| Part number | B121EW07-V1 |
|---|---|
| Manufacturer | AUO |
| File Size | 634.00 KB |
| Description | WXGA Color TFT-LCD |
| Datasheet |
 B121EW07-V1 Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: B121EW07-V1, B121EW07_V1. Please refer to the document for exact specifications by model. |
|
|

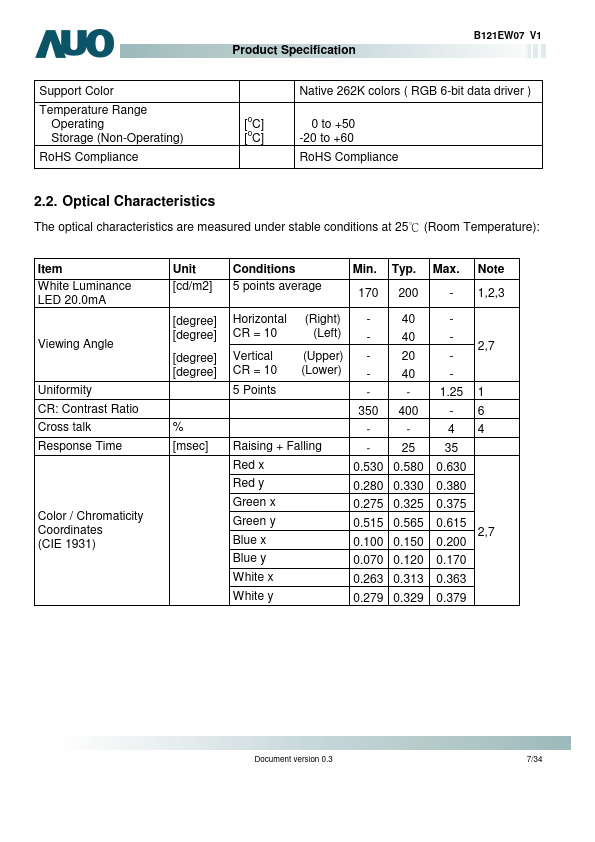

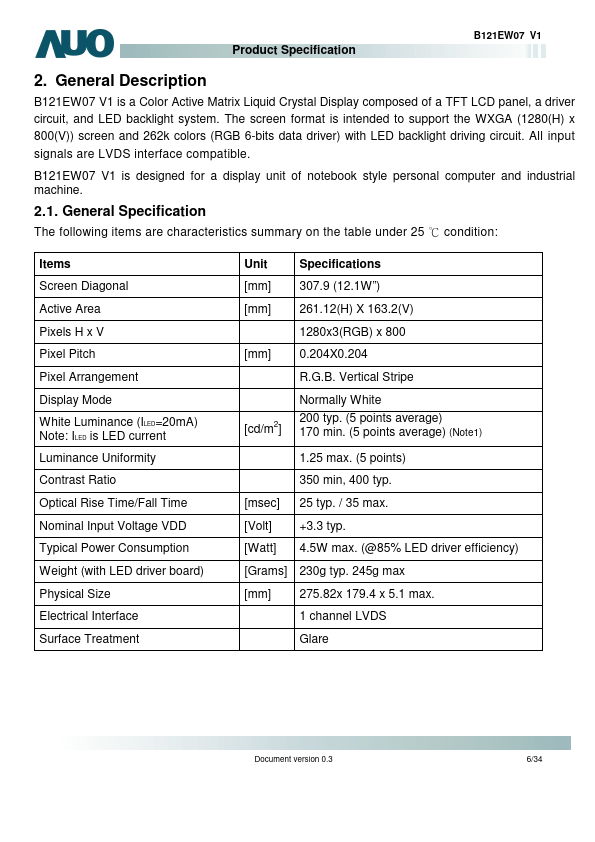

2.1 General Specification 6 2.2 Optical Characteristics 7 3. Functional Block Diagram11 4. Absolute Maximum Ratings 12 4.1 Absolute Ratings of TFT LCD Module 12 4.2 Absolute Ratings of Backlight Unit 12 4.3 Absolute Ratings of Environment 12 5. Electrical characteristics13 5.1 TFT LCD Module 13 5.2 Backlight Unit 15 6. Signal Characteristic 16 6.1 Pixel Format Image 16 6.2 The input data format 17 6.3 Signal Description / PIN Assignment 18 6.4 Interface Timing 20 6.5 Power ON/OFF Seque
