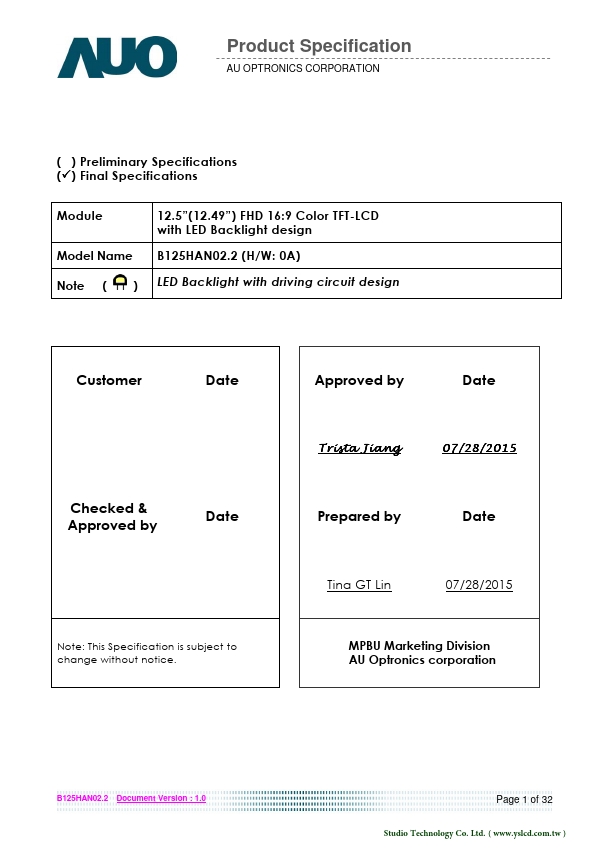

B125HAN02.2 Overview

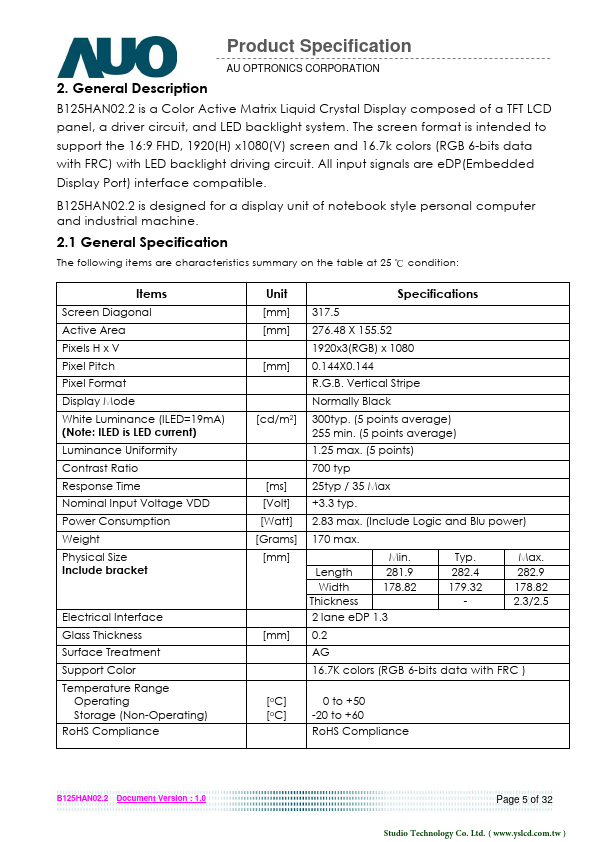

B125HAN02.2 is a Color Active Matrix Liquid Crystal Display posed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 FHD, 1920(H) x1080(V) screen and 16.7k colors (RGB 6-bits data with FRC) with LED backlight driving circuit. All input signals are eDP(Embedded Display Port) interface patible.
