B133XTN01.5 Overview

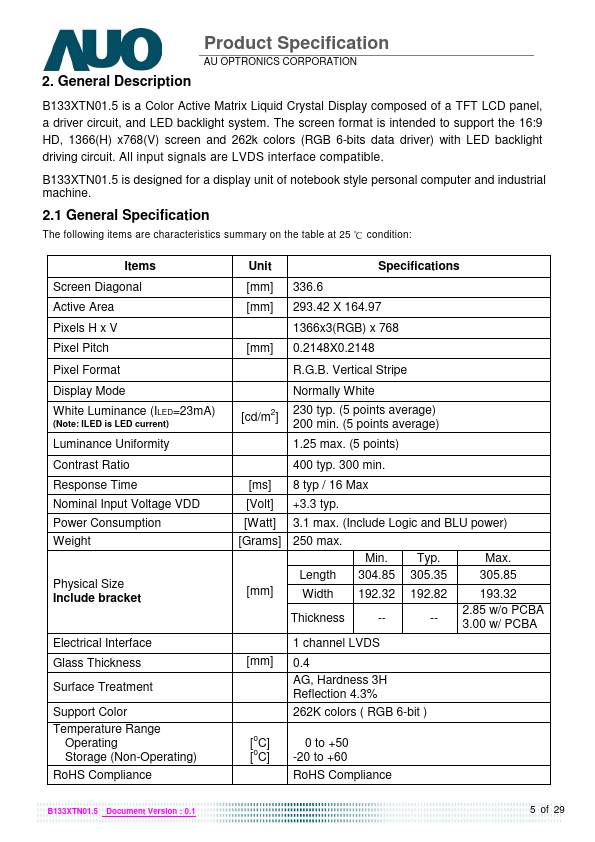

B133XTN01.5 is a Color Active Matrix Liquid Crystal Display posed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 HD, 1366(H) x768(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface patible.
