B140XTN02.0 - TFT LCD

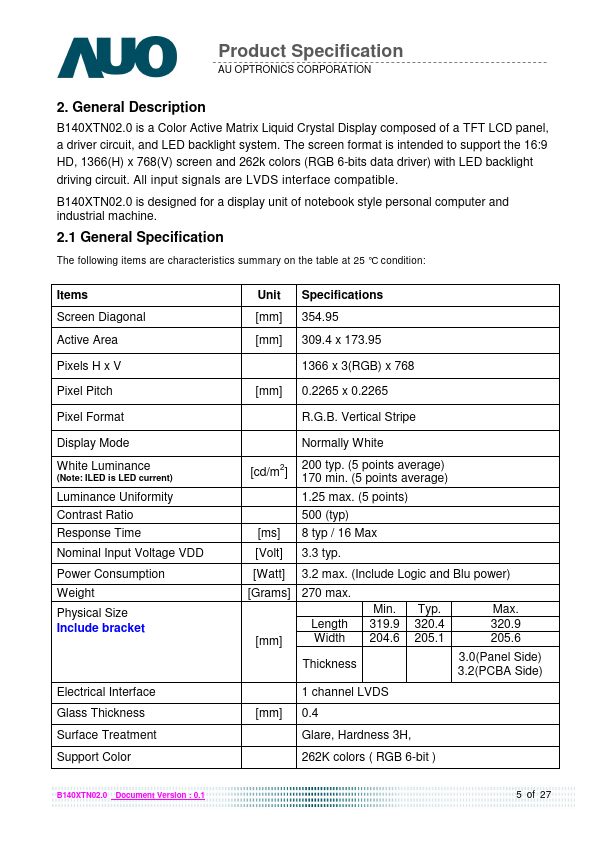

General Description

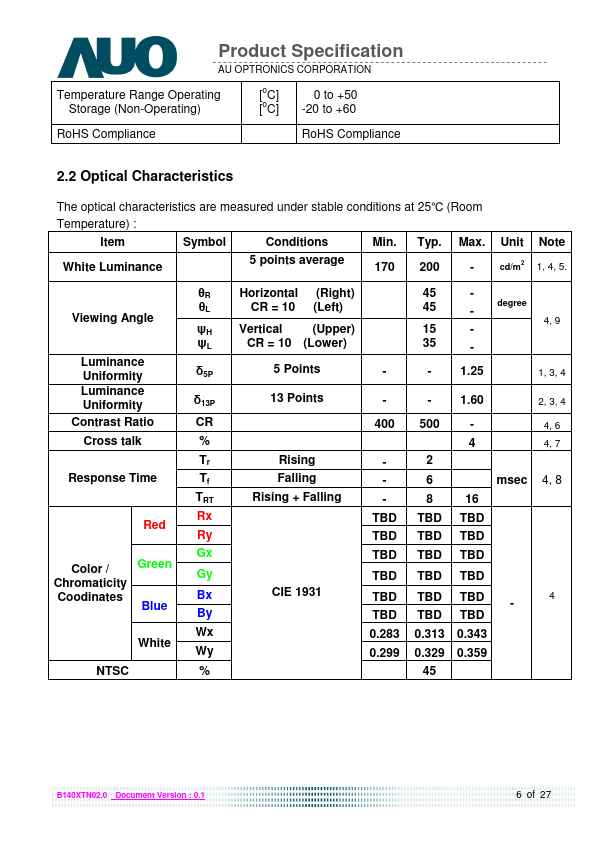

5 2.1 General Specification 5 2.2 Optical Characteristics 6 3.

Functional Block Diagram 11 4.

Absolute Maximum Ratings 12 4.1 Absolute Ratings of TFT LCD Module12 4.2 Absolute Ratings of Environment 12 5.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
B140 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Diodes Incorporated
B140-E3 Surface Mount Schottky Barrier Rectifier Vishay
B140-M3 Surface Mount Schottky Barrier Rectifier Vishay
B1401RH 14-Bit 20MSPS Analog-to-Digital Converter Beijing Microelectronics
B1403N 5-Dot Red/Green LED Level Meter Sanyo

Other Datasheets by AU Optronics

Part Number Description
B140XTN02.1 TFT LCD
B140XTN02.3 HD 16:9 Color TFT-LCD
B140XTN02.4 TFT LCD
B140XTN02.5 TFT LCD
B140XTN02.9 HD 16:9 Color TFT-LCD

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

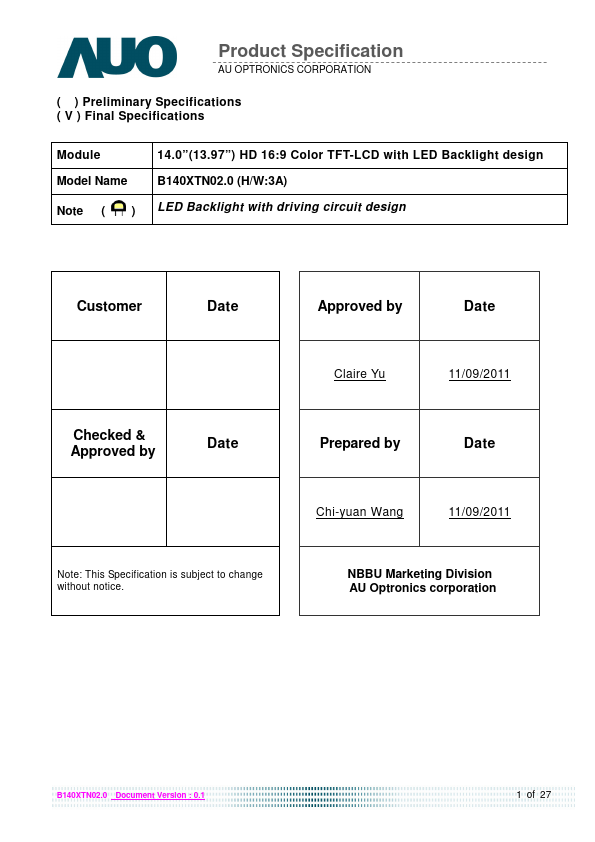

Product Specification AU OPTRONICS CORPORATION ( ) Preliminary Specifications ( V ) Final Specifications Module Model Name Note ( ) 14.0”(13.97”) HD 16:9 Color TFT-LCD with LED Backlight design B140XTN02.0 (H/W:3A) LED Backlight with driving circuit design Customer Date Approved by Date Claire Yu 11/09/2011 Checked & Approved by Date Prepared by Date Chi-yuan Wang 11/09/2011 Note: This Specification is subject to change without notice. NBBU Marketing Division AU Optronics corporation B140XTN02.0 Document Version : 0.1 1 of 27 Free Datasheet http://www.Datasheet4U.com Product Specification AU OPTRONICS CORPORATION Contents 1. Handling Precautions ........................................................................... 4 2. General Description ........................
