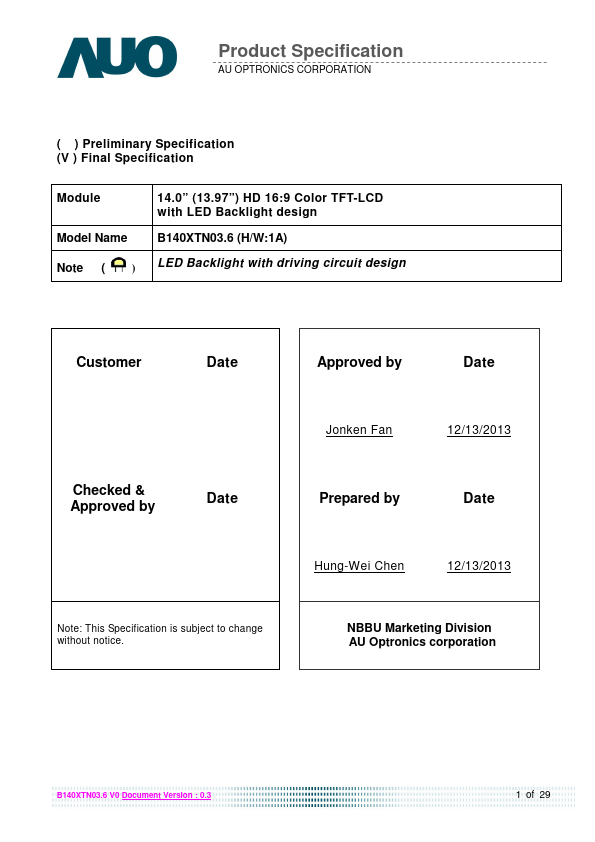

Datasheet Summary
Product Specification
AU OPTRONICS CORPORATION
( ) Preliminary Specification (V ) Final Specification
Module Model Name Note ( )
14.0” (13.97”) HD 16:9 Color TFT-LCD with LED Backlight design
B140XTN03.6 (H/W:1A)
LED Backlight with driving circuit design
Customer
Date
Approved by
Date
Checked & Approved by
Date
Jonken Fan
12/13/2013
Prepared by
Date
Hung-Wei Chen
12/13/2013
Note: This Specification is subject to change without notice.
NBBU Marketing Division AU Optronics corporation
B140XTN03.6 V0 Document Version : 0.3
1 of 29
Product Specification
AU OPTRONICS CORPORATION

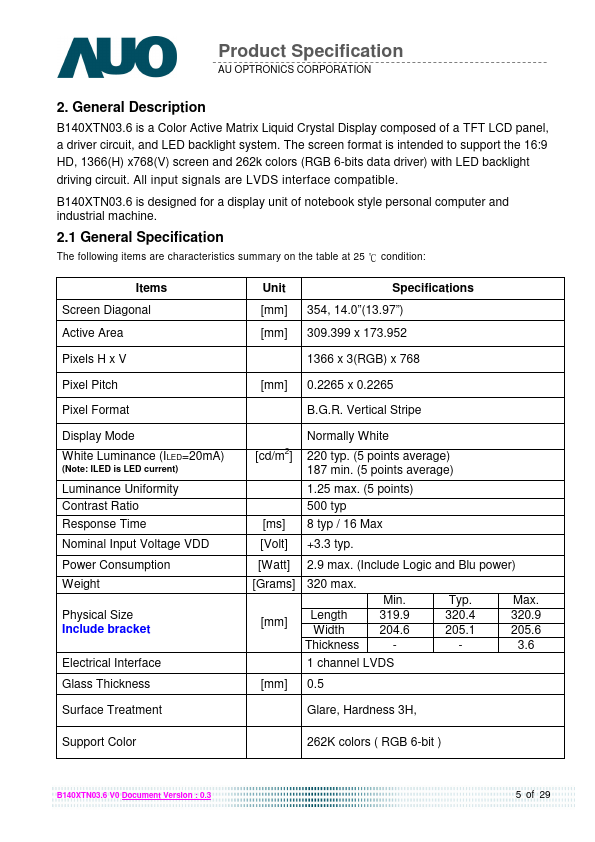

2. General Description
B140XTN03.6 is a Color Active Matrix Liquid Crystal Display posed of a...
