B140XW01-V2 Overview

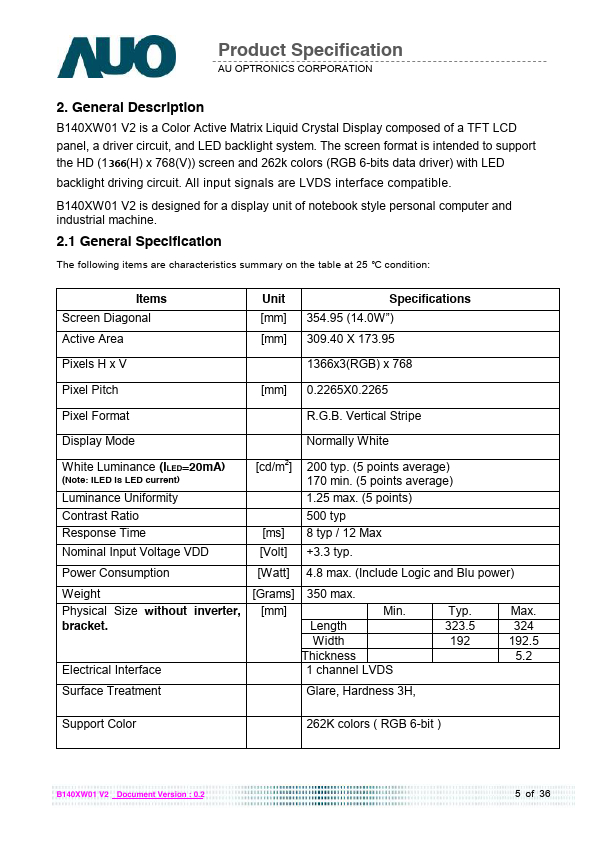

B140XW01 V2 is a Color Active Matrix Liquid Crystal Display posed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the HD (1366(H) x 768(V)) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface patible.
