B154EW09-V0 - Color TFT-LCD

Description

3.

Functional Block Diagram 11 4.

5.

📥 Download Datasheet

Datasheet Details

Part number B154EW09-V0
Manufacturer AUO
File Size 591.44 KB
Description Color TFT-LCD
Datasheet download datasheet B154EW09-V0 Datasheet

📁 Similar Datasheet

  • B1548 - 2SB1548 (Panasonic Semiconductor)
  • B154SW01 - LCD Module (AU OPTRONICS)
  • B150 - SCHOTTKY BARRIER RECTIFIER (LITE-ON)
  • B150 - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B150-E3 - Surface Mount Schottky Barrier Rectifier (Vishay)
  • B150-M3 - Surface Mount Schottky Barrier Rectifier (Vishay)
  • B1503 - 2SB1503 (Panasonic Semiconductor)
  • B1503M-2WR3 - DC/DC Power Module (K-CUT)
  • B1505D-1W - SINGLE OUTPUT MINIATURE SIP/DIP (MORNSUN)
  • B1505M-2WR3 - DC/DC Power Module (K-CUT)
Other Datasheets by AUO

Full PDF Text Transcription

Click to expand full text

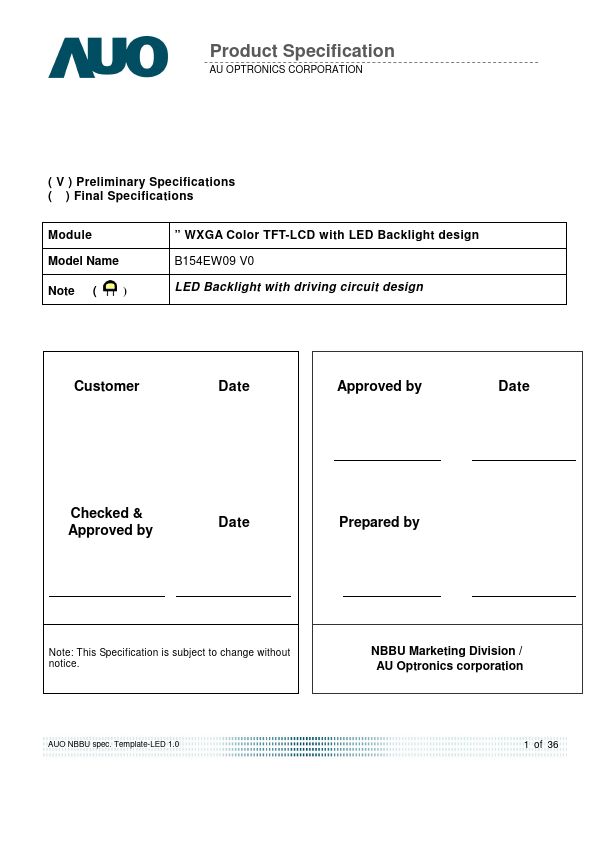

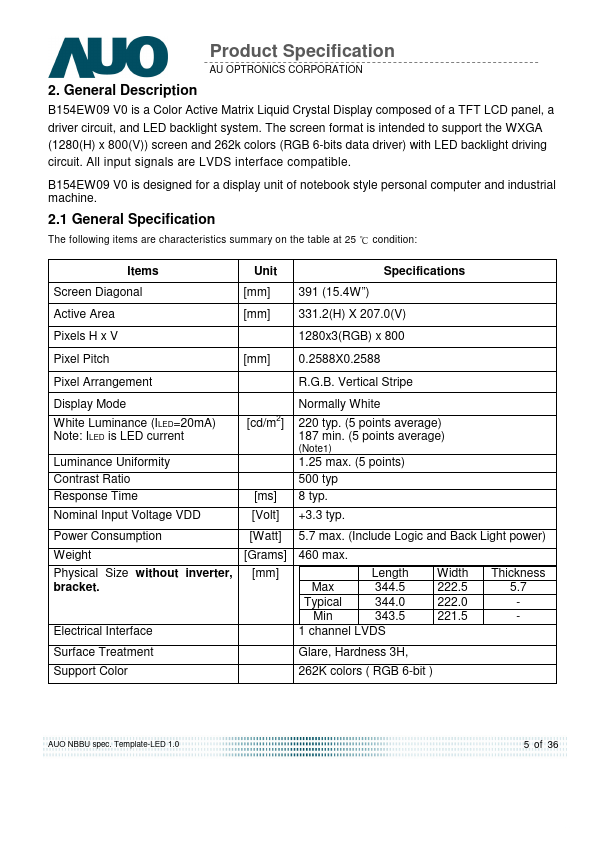

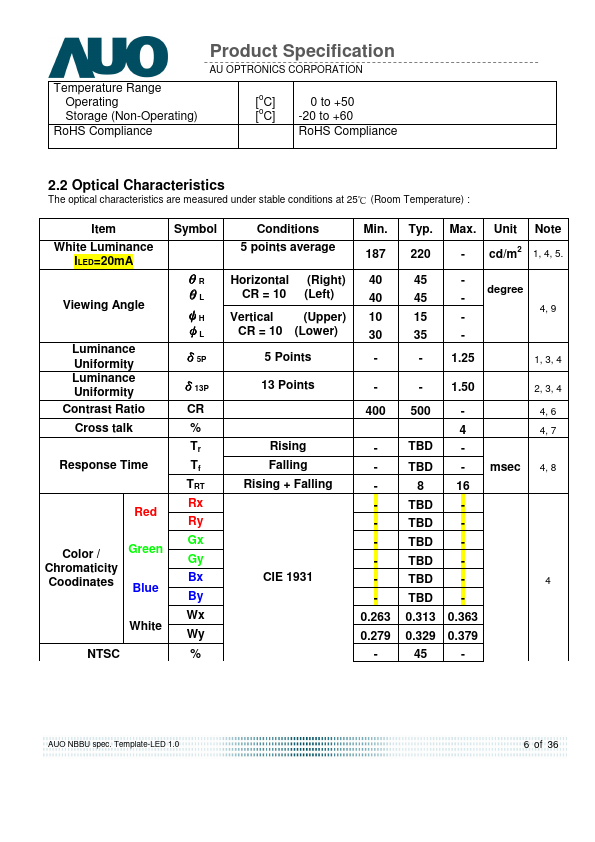

Product Specification AU OPTRONICS CORPORATION ( V ) Preliminary Specifications ( ) Final Specifications Module Model Name Note ( ) ” WXGA Color TFT-LCD with LED Backlight design B154EW09 V0 LED Backlight with driving circuit design Customer Date Approved by Date www.DataSheet.co.kr Checked & Approved by Date Prepared by Note: This Specification is subject to change without notice. NBBU Marketing Division / AU Optronics corporation AUO NBBU spec. Template-LED 1.0 1 of 36 Datasheet pdf - http://www.DataSheet4U.net/ Product Specification AU OPTRONICS CORPORATION Contents 1. Handling Precautions .............................................................. 4 2. General Description ................................................................ 5 2.1 General Specification ...
