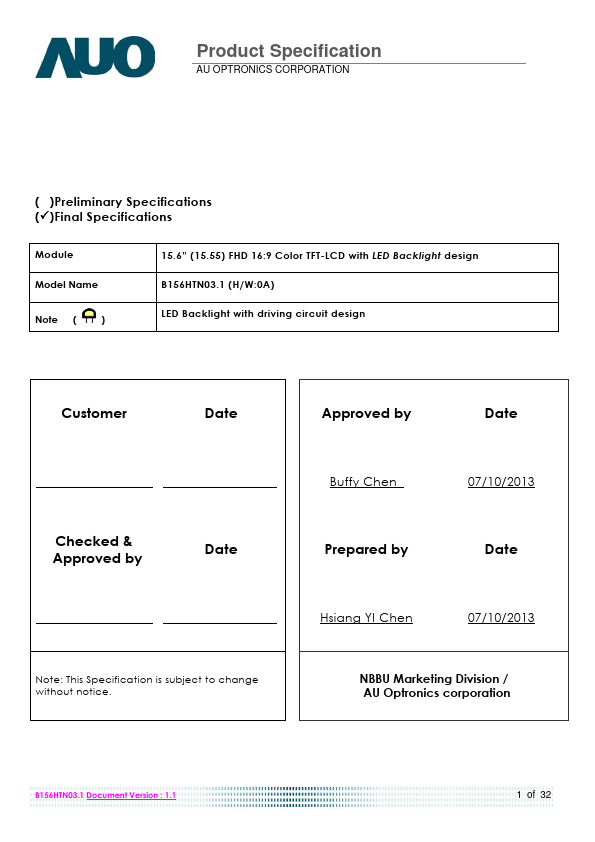

Overview: Product Specification AU OPTRONICS CORPORATION www.yslcd.com.tw ( )Preliminary Specifications ( )Final Specifications Module Model Name Note ( ) 15.6” (15.55) FHD 16:9 Color TFT-LCD with LED Backlight design B156HTN03.1 (H/W:0A) LED Backlight with driving circuit design Customer Date Checked & Approved by Date Note: This Specification is subject to change without notice. Approved by Date Buffy Chen 07/10/2013 Prepared by Date Hsiang YI Chen 07/10/2013 NBBU Marketing Division / AU Optronics corporation B156HTN03.1 Document Version : 1.1 1 of 32 www.yslcd.com.tw Product Specification AU OPTRONICS CORPORATION Contents 1. Handling Precautions ....................................................................................... 4 2.
| Part number | B156HTN03.1 |
|---|---|
| Manufacturer | AU Optronics |
| File Size | 842.39 KB |
| Description | FHD 16:9 Color TFT-LCD |
| Datasheet | B156HTN03.1-AUO.pdf |
|
|
|
..........................................................................................

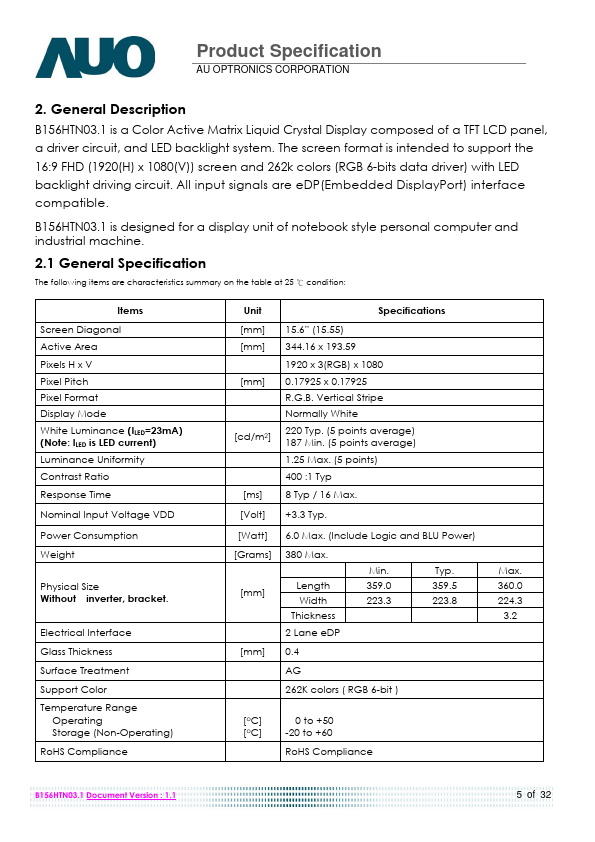

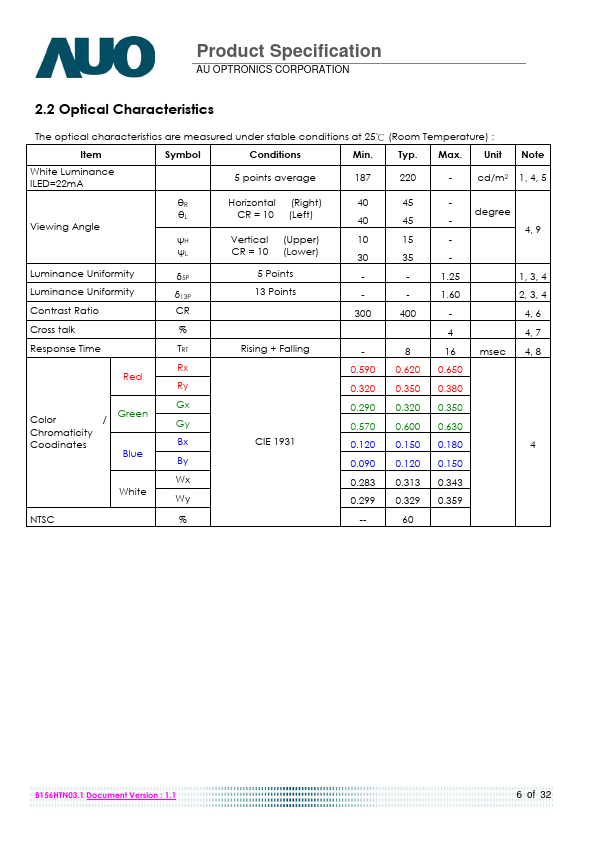

5 2.1 General Specification .........................................................................................................5 2.2 Optical Characteristics .......................................................................................................6 3.
Functional Block Diagram..............................................................................
| Part Number | Description |
|---|---|
| B156HTN03.0 | Color TFT-LCD |
| B156HTN03.2 | Color TFT-LCD |
| B156HTN03.3 | FHD 16:9 Color TFT-LCD |
| B156HTN03.4 | Color TFT-LCD |
| B156HTN03.6 | FHD 16:9 Color TFT-LCD |
| B156HTN01.0 | Color TFT-LCD |
| B156HTN01.1 | FHD 16:9 Color TFT-LCD |
| B156HTN02.1 | FHD 16:9 Color TFT-LCD |
| B156HAN01.0 | FHD 16:9 Color TFT-LCD |
| B156HAN01.2 | FHD 16:9 Color TFT-LCD |
