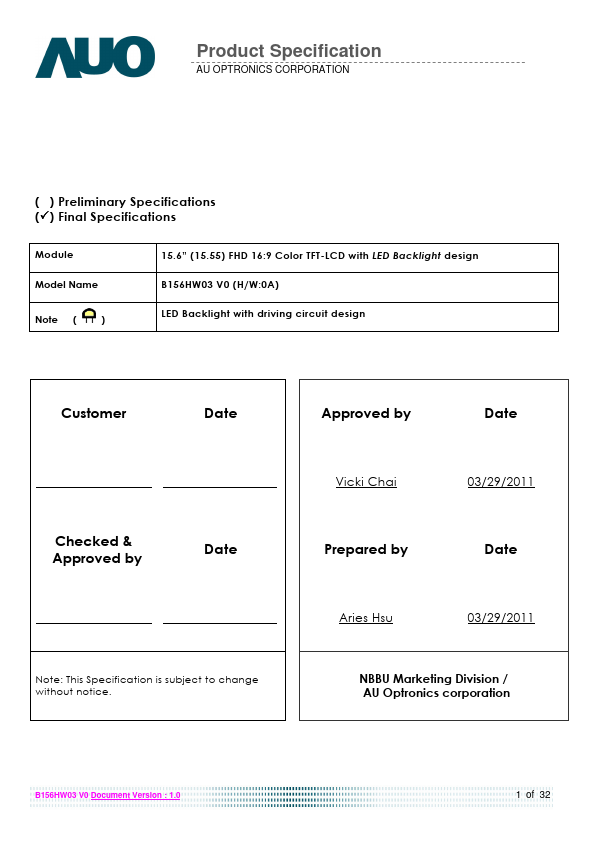

Product Specification
AU OPTRONICS CORPORATION
( ) Preliminary Specifications ( ) Final Specifications
Module Model Name Note ( )
15.6” (15.55) FHD 16:9 Color TFT-LCD with LED Backlight design B156HW03 V0 (H/W:0A) LED Backlight with driving circuit design
Customer
Date
Checked & Approved by
Date
Note: This Specification is subject to change without notice.
Approved by
Date
Vicki Chai
03/29/2011
Prepared by
Date
Aries Hsu
03/29/2011
NBBU Marketing Division / AU Optronics corporation
B156HW03 V0 Document Version : 1.0
1 of 32
Product Specification
AU OPTRONICS CORPORATION

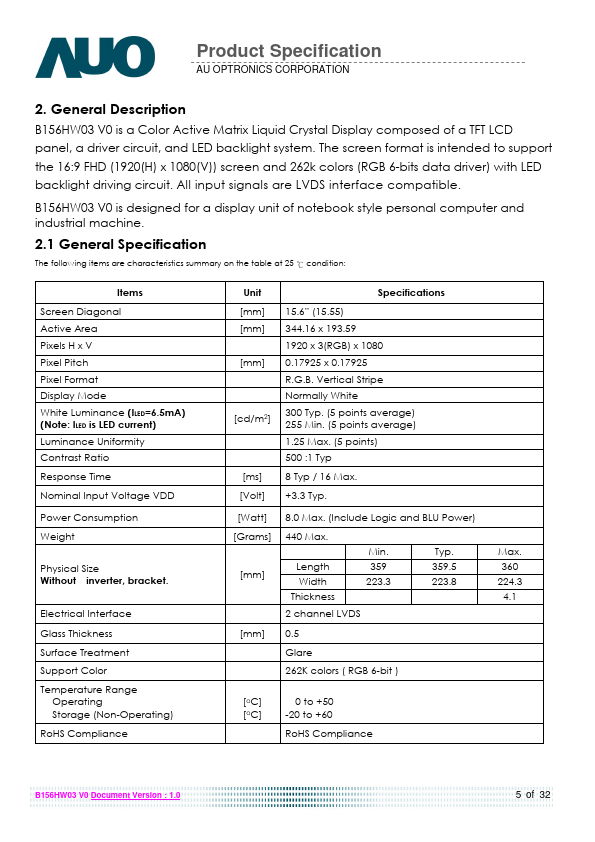

2. General Description
B156HW03 V0 is a Color Active Matrix Liquid Crystal Display posed of a TFT...
