B156XTN03.5 - Color TFT-LCD

General Description

3.

Functional Block Diagram 11 4.

5.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
B156 PNP Transistor Hitachi
B1560 Silicon PNP Epitaxial Planar Transistor Sanken electric
B1565 Power Transistor Rohm
B1566 Power Transistor Rohm
B1568 2SB1568 Rohm

Other Datasheets by AU Optronics

Part Number Description
B156XTN03.1 TFT LCD
B156XTN03.2 TFT LCD
B156XTN01.0 Color TFT-LCD
B156XTN02.0 HD 16:9 Color TFT-LCD
B156XTN02.1-0A TFT LCD Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

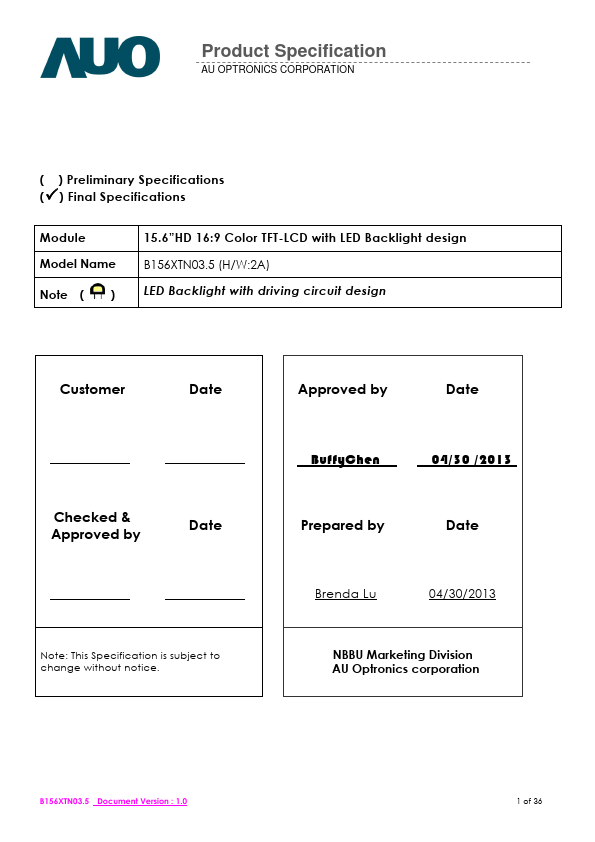

www.yslcd.com.tw Product Specification AU OPTRONICS CORPORATION ( ) Preliminary Specifications ( ) Final Specifications Module Model Name Note ( ) 15.6”HD 16:9 Color TFT-LCD with LED Backlight design B156XTN03.5 (H/W:1A) LED Backlight with driving circuit design Customer Date Checked & Approved by Date Note: This Specification is subject to change without notice. Approved by Date Buffy Chen 04/08/2013 Prepared by Date Brenda Lu 04/08/2013 NBBU Marketing Division AU Optronics corporation B156XTN03.5 Document Version : 1.1 1 of 36 www.yslcd.com.tw Product Specification AU OPTRONICS CORPORATION Contents 1. Handling Precautions .................................................................... 4 2. General Description.....................................................
