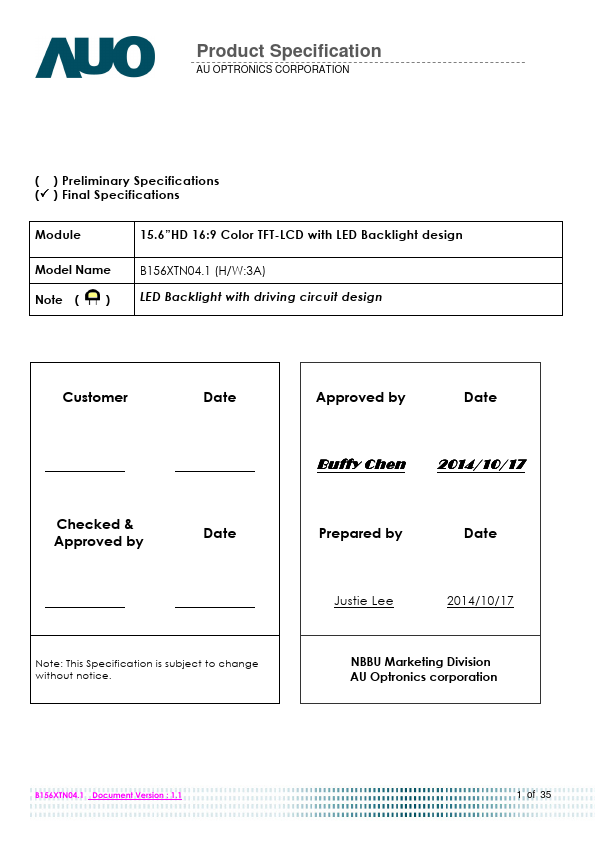

Overview: Product Specification AU OPTRONICS CORPORATION ( ) Preliminary Specifications ( ) Final Specifications Module Model Name Note ( ) 15.6”HD 16:9 Color TFT-LCD with LED Backlight design B156XTN04.1 (H/W:3A) LED Backlight with driving circuit design Customer Date Approved by Date Checked & Approved by Date Note: This Specification is subject to change without notice. Buffy Chen 2014/10/17 Prepared by Date Justie Lee 2014/10/17 NBBU Marketing Division AU Optronics corporation B156XTN04.1 Document Version : 1.1 1 of 35 Product Specification AU OPTRONICS CORPORATION Contents 1. Handling Precautions ....................................................................................... 4 2.
| Part number | B156XTN04.1 |
|---|---|
| Manufacturer | AU Optronics |
| File Size | 905.02 KB |
| Description | Color TFT-LCD |
| Datasheet | B156XTN04.1-AUO.pdf |
|
|
|
..........................................................................................

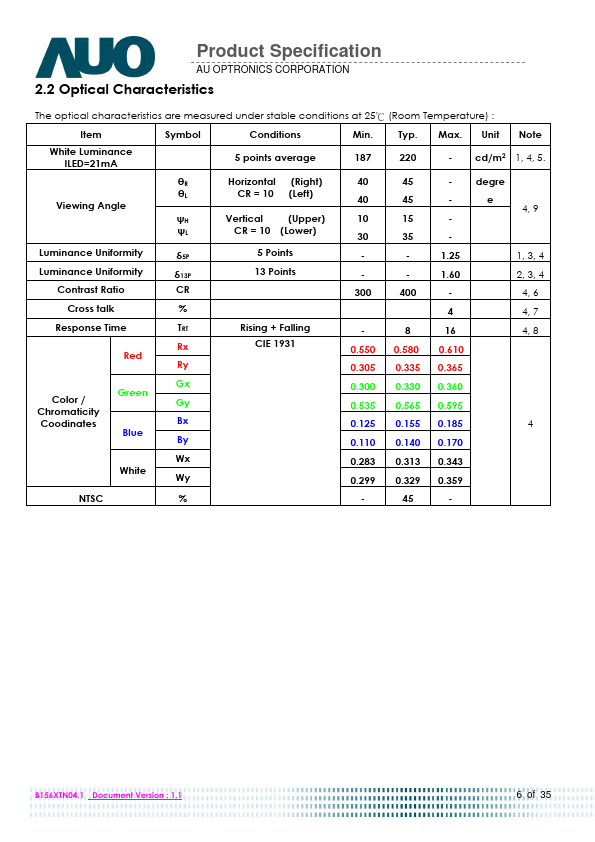

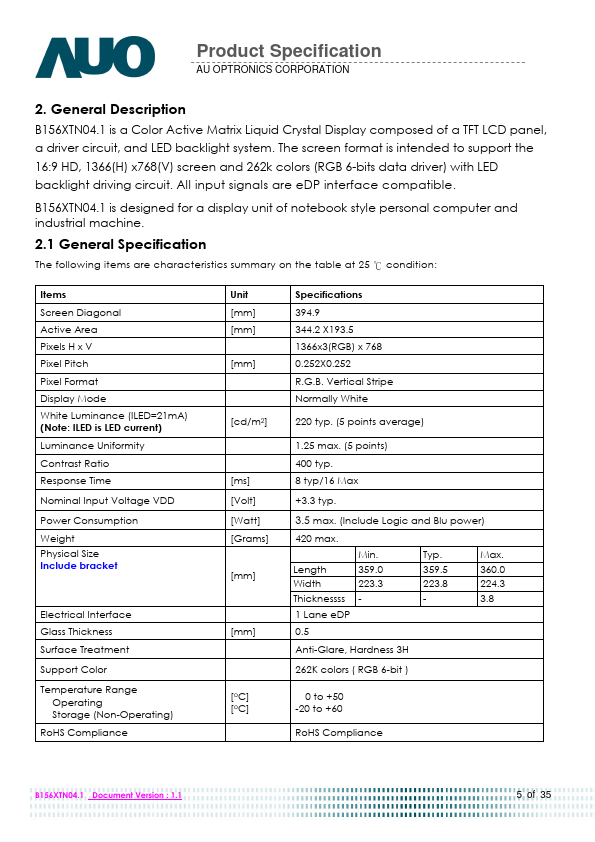

5 2.1 General Specification .........................................................................................................5 2.2 Optical Characteristics .......................................................................................................6 3.
Functional Block Diagram..............................................................................
| Part Number | Description |
|---|---|
| B156XTN04.0 | TFT LCD Module |
| B156XTN04.2 | TFT LCD Module |
| B156XTN04.3 | HD 16:9 Color TFT-LCD |
| B156XTN01.0 | Color TFT-LCD |
| B156XTN02.0 | HD 16:9 Color TFT-LCD |
| B156XTN02.1-0A | TFT LCD Module |
| B156XTN02.1-3A | TFT LCD Module |
| B156XTN02.2 | HD 16:9 Color TFT-LCD |
| B156XTN02.3 | HD 16:9 Color TFT LCD |
| B156XTN02.4 | HD 16:9 Color TFT-LCD |
