B156XW02-V0 - LCD Module

General Description

3.

Functional Block Diagram 11 4.

5.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
B156 PNP Transistor Hitachi
B1560 Silicon PNP Epitaxial Planar Transistor Sanken electric
B1565 Power Transistor Rohm
B1566 Power Transistor Rohm
B1568 2SB1568 Rohm

Other Datasheets by AU Optronics

Part Number Description
B156XW02-V1 LCD Module
B156XW02-V2 LCD
B156XW02-V3 LCD
B156XW02-V5 HD 16:9 Color TFT-LCD
B156XW02-V6 LCD Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

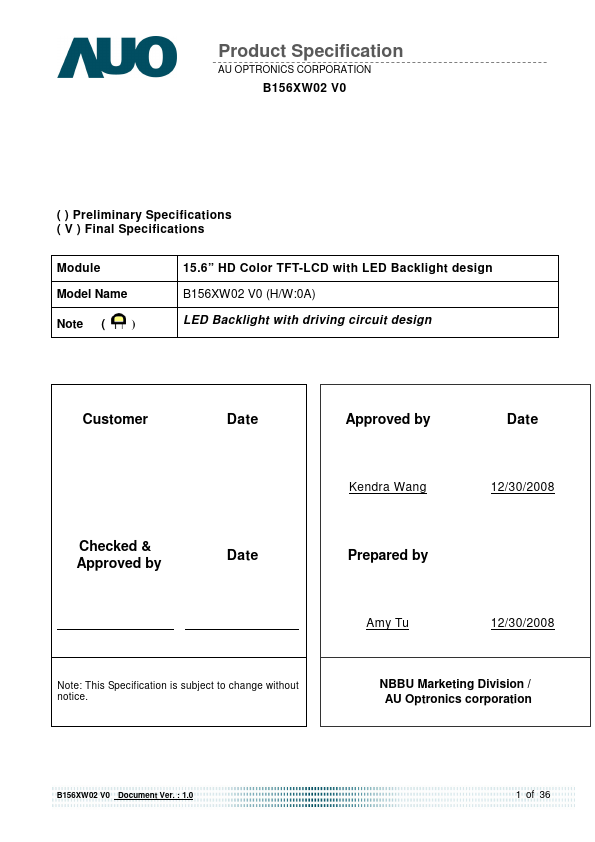

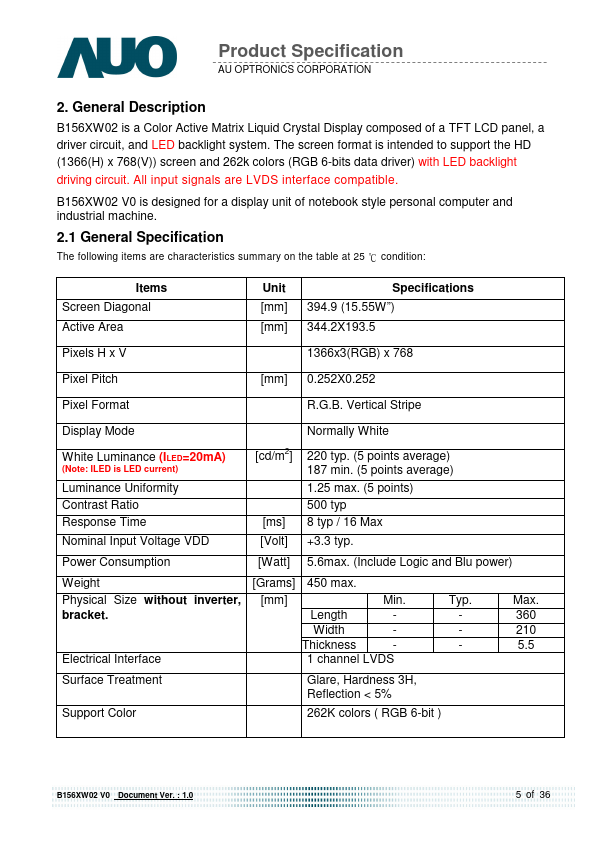

www.DataSheet4U.net Product Specification AU OPTRONICS CORPORATION B156XW02 V0 ( V ) Preliminary Specifications ( ) Final Specifications Module Model Name Note ( ) 15.6” HD Color TFT-LCD with LED Backlight design B156XW02 V0 (H/W:AA) LED Backlight with driving circuit design Customer Date Approved by Date Kendra Wang 10/21/2008 Checked & Approved by Date Prepared by Amy Tu 10/21/2008 Note: This Specification is subject to change without notice. NBBU Marketing Division / AU Optronics corporation B156XW02 V0 Document Ver. : 0.3 1 of 36 www.DataSheet4U.net Product Specification AU OPTRONICS CORPORATION Contents 1. Handling Precautions .............................................................. 4 2. General Description ................................................
