GENERAL DESCRIPTION

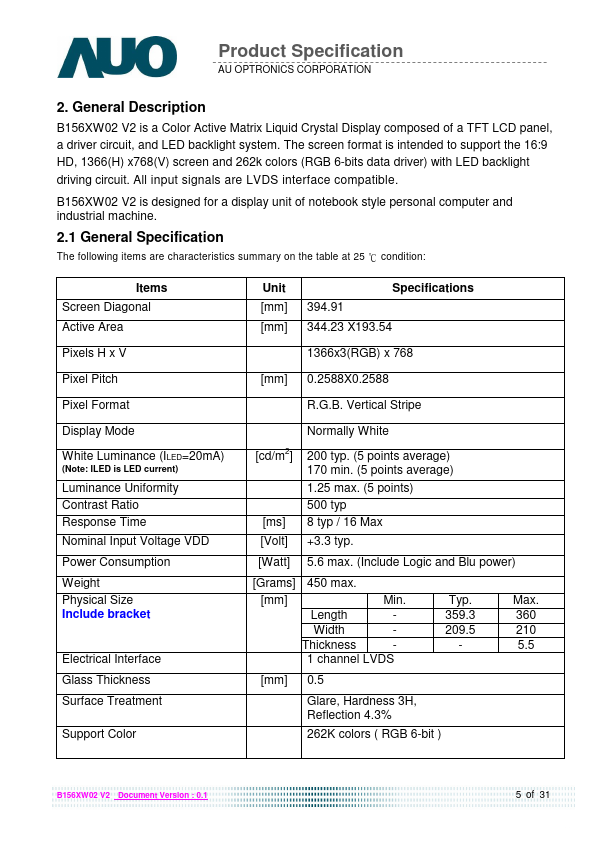

B156XW02 V2 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. All input signals are LVDS interface compatible. B156XW02 V2 is designed for a display unit of notebook style personal computer and industrial machine. 2.1 General Specification The following items are characteristics summary on the table at 25 condition: Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Format Display Mode White Luminance (ILED=20mA) (Note: ILED is LED current) Luminance Uniformity Contrast Ratio Response Time Nominal Input Voltage VDD Power Consumption Weight Physical Size Include bracket Electrical Interface Glass Thickness Surface Treatment Support Color Unit [mm] [mm] 394.91 Specifications 344.23 X193.54 1366x3(RGB) x 768 [mm] 0.2588X0.2588 R.G.B. Vertical Stripe Normally White [cd/m2] [ms] [Volt] 200 typ. (5 points average) 170 min. (5 points average) 1.25 max. (5 points) 500 typ 8 typ / 16 Max +3.3 typ. [Watt] 5.6 max. (Include Logic and Blu power) [Grams] 450 max. [mm] Min.
