B173RTN01.4 - HD+ 16:9 Color TFT-LCD

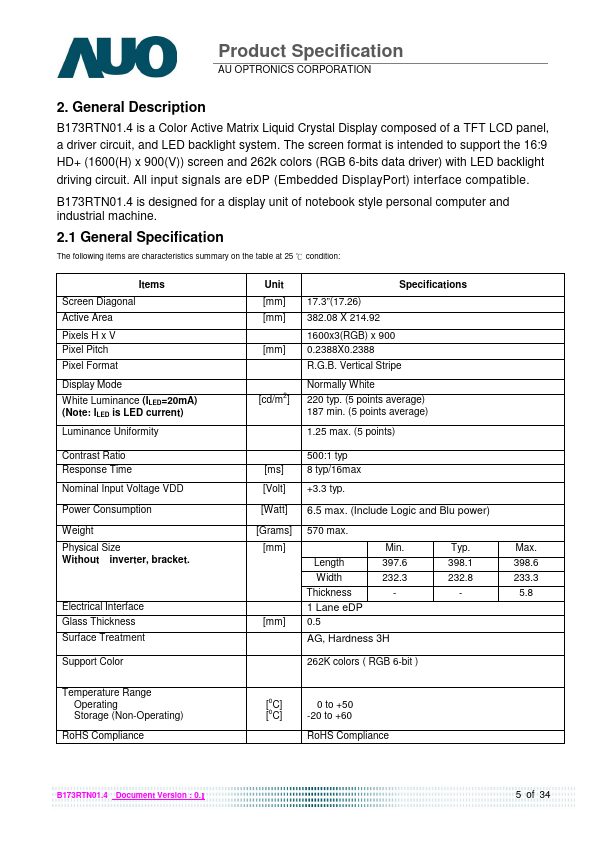

General Description

3.

Functional Block Diagram 11 4.

5.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
B170 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Diodes Incorporated
B1706 Bandpass Filter EPCOS
B1707 SAW IF filter EPCOS
B1708 SAW IF filter EPCOS
B1709 SAW IF filter EPCOS

Other Datasheets by AU Optronics

Part Number Description
B173RTN01.1 HD+ 16:9 Color TFT LCD
B173RTN01.2 HD+ 16:9 Color TFT LCD
B173RTN01.3 HD+ 16:9 Color TFT-LCD
B173RW01-V0 Color TFT-LCD
B173RW01-V1 Color TFT-LCD

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

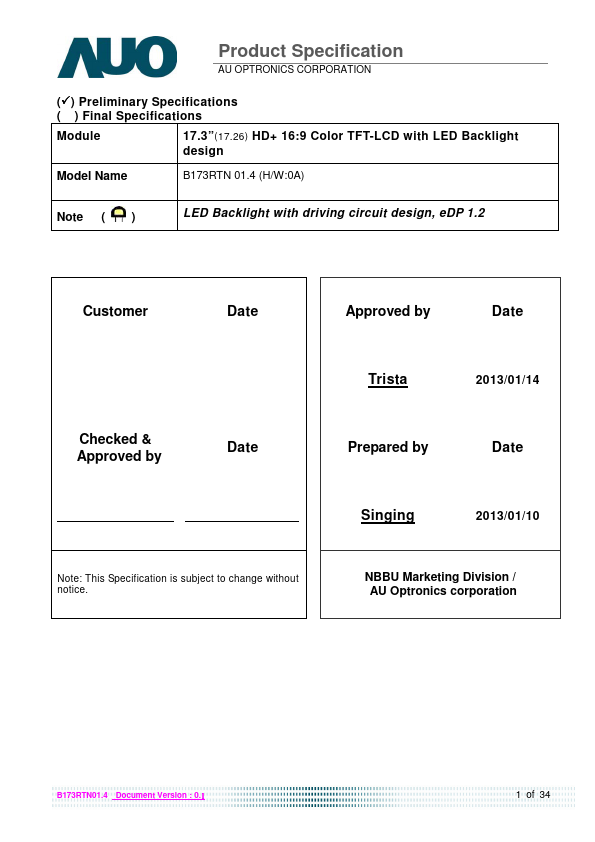

www.yslcd.com.tw Product Specification AU OPTRONICS CORPORATION ( ) Preliminary Specifications ( ) Final Specifications Module 17.3”(17.26) HD+ 16:9 Color TFT-LCD with LED Backlight design Model Name B173RTN 01.4 (H/W:0A) Note ( ) LED Backlight with driving circuit design, eDP 1.2 Customer Date Approved by Date Checked & Approved by Date Trista 2013/01/14 Prepared by Date Singing 2013/01/10 Note: This Specification is subject to change without notice. NBBU Marketing Division / AU Optronics corporation B173RTN01.4 Document Version : 0.1 1 of 34 www.yslcd.com.tw Product Specification AU OPTRONICS CORPORATION Contents 1. Handling Precautions....................................................................................... 4 2. General Description................
