AU Optronics G070VTN02.0
TFT-LCD
| Part No. | G070VTN02.0 |
|---|---|
| Datasheet | G070VTN02.0 Download |
| Manufacturer |  AU Optronics |
| Description | TFT-LCD |
| Buy | Stock & Price |

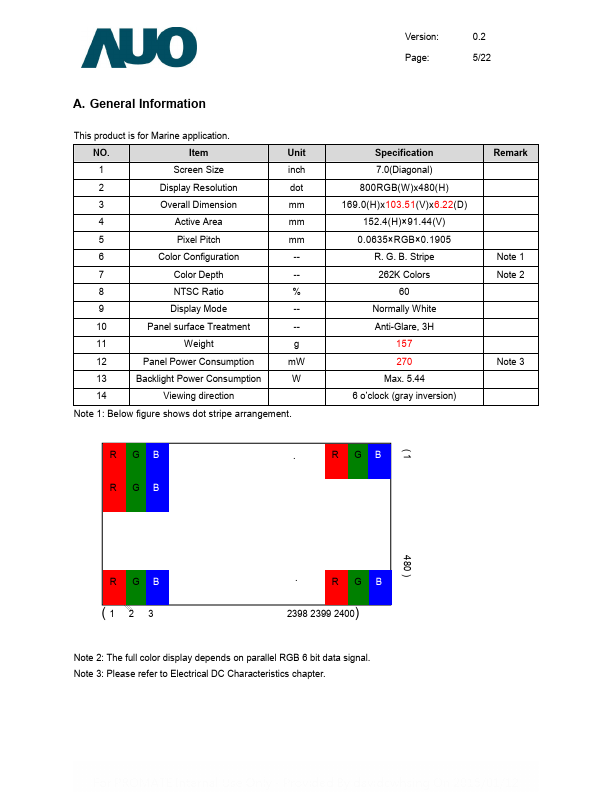

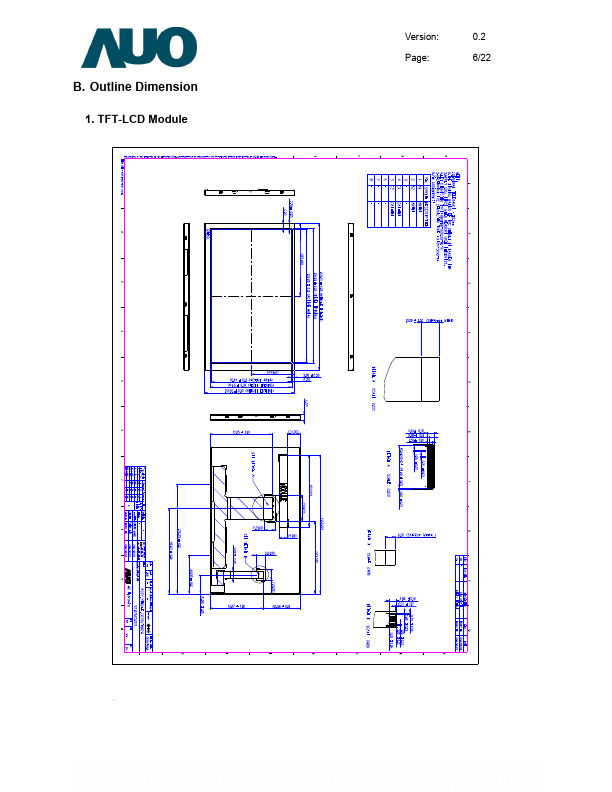

ELECTRICAL SPECIFICATIONS
Version: 0.2 Page: 7/22 1. TFT LCD Panel Pin Assignment Recommended connector : Omron XF2M-5015-1A NO. Symbol I/ODESCRIPTION
Remark 1 VCOM P Voltage applied to color filter substrate 2 VGH P Gate driver positive voltage 3 VGL P Gate driver negative voltage 4 VDD P Power supply, 3.3V (typical) 5 GND P Ground 6 V1 I Voltage for gamma correction 7 V2 I Voltage for gamma correction 8 V3 I Voltage for gamma correction 9 V4 I Voltage for gamma correction 10 V5 I Voltage for gamma correction 11 V6 I Voltage for gamma correction 12 V7 I Voltage for gamma correction 13 V8 I Voltage for gamma correction 14 V9 I Voltage for gamma correction 15 V10 I Voltage for gamma correction 16 V11 I Voltage for gamma correction 17 V12 I Voltage for gamma correction 18 V13 I Voltage for gamma correction 19 V14 I Voltage for gamma correction 20 AVDD P Power for source driver IC 21 AVDD P Power for source driver IC 22 GND P Ground 23 VS I Vertical sync input MODE = H , HSD_DE active hi...
