AU Optronics G101EAN02
G101EAN02.5 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel and LED backlight system. The screen format is intended to support the 16:10 WXGA, 1200(H) x 800(V) screen and 16.7M colors (RGB 6-bits + Hi-FRC) with LED backlight driving circuit.| Part No. | G101EAN02 |
|---|---|
| Datasheet | G101EAN02 Download |
| Manufacturer |  AU Optronics |
| Description | 10.1 Inch Color TFT-LCD |
| Buy | Stock & Price |

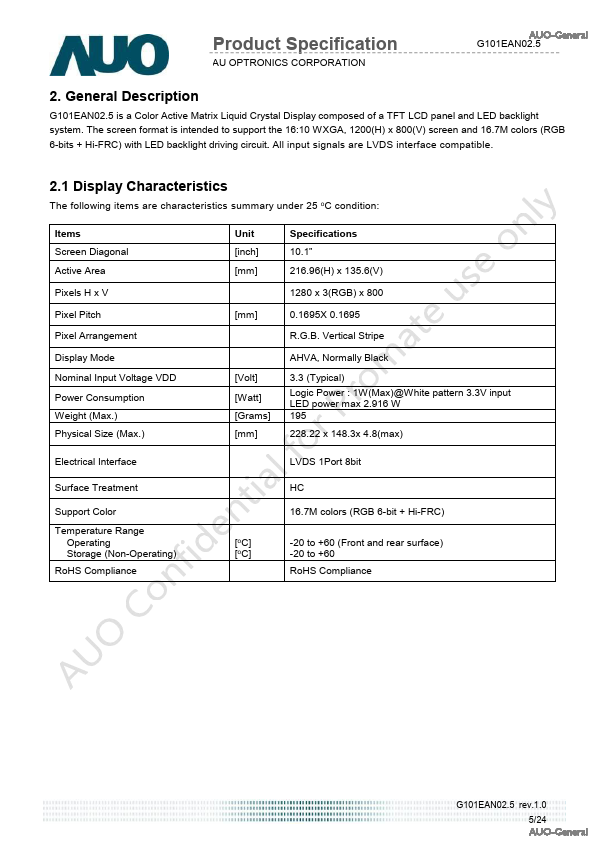

GENERAL DESCRIPTION

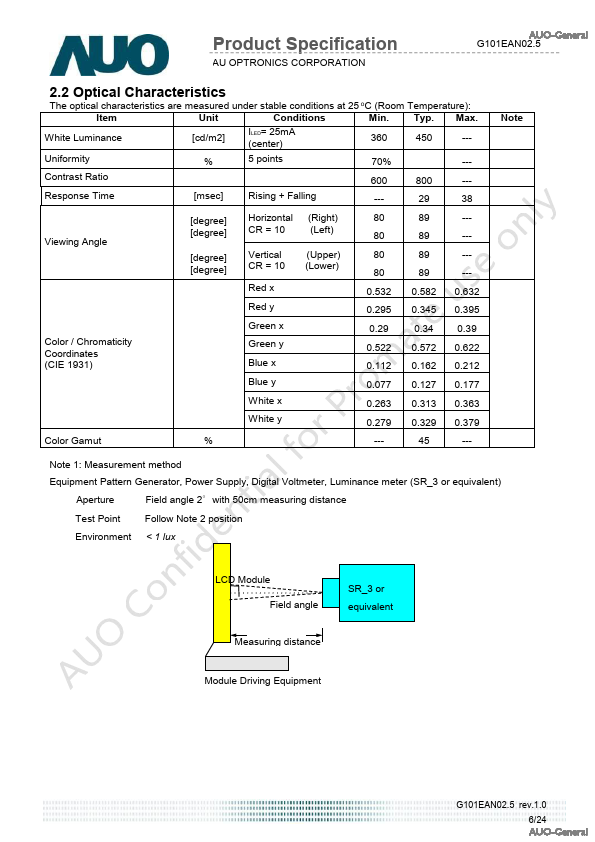

All input signals are LVDS interface compatible. 2.1 Display Characteristics The following items are characteristics summary under 25 oC condition: Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD Power Consumption Weight (Max.) Physical Size (Max.) Unit [inch] [mm] [mm] [Volt] [Watt] [Grams] [mm] Specifications 10.1” 216.96(H) x 135.6(V) 1280 x 3(RGB) x 800 0.1695X 0.1695 R.G.B. Vertical Stripe AHVA, Normally Black 3.3 (Typical) Logic Power : 1W(Max)@White pattern 3.3V input LED power max 2.916 W 195 228.22 x 148.3x 4.8(max) Electrical Interface LVDS 1Port 8bit Surface Treatment Support Color Temperature Range Operating Storage (Non-Operating) RoHS Compliance HC 16.7M colors (RGB 6-bit + Hi-FRC) [oC] -20 to +60 (Front and rear surface) [oC] -20 to +60 RoHS Compliance G101EAN02.5 rev.1.0 5/24 AUO-General Product Specification AU OPTRONICS CORPORATION AUO-General G101EAN02.5 2.2 Optical Characteristics The optical characteristics are measured under stable conditions at 25 oC (Room Temperature): Item Unit Conditions Min.
