| Part number | G104VN01-V1 |
|---|---|
| Manufacturer | AUO |
| File Size | 658.79 KB |
| Description | 10.4 Inch Color TFT-LCD |
| Datasheet |

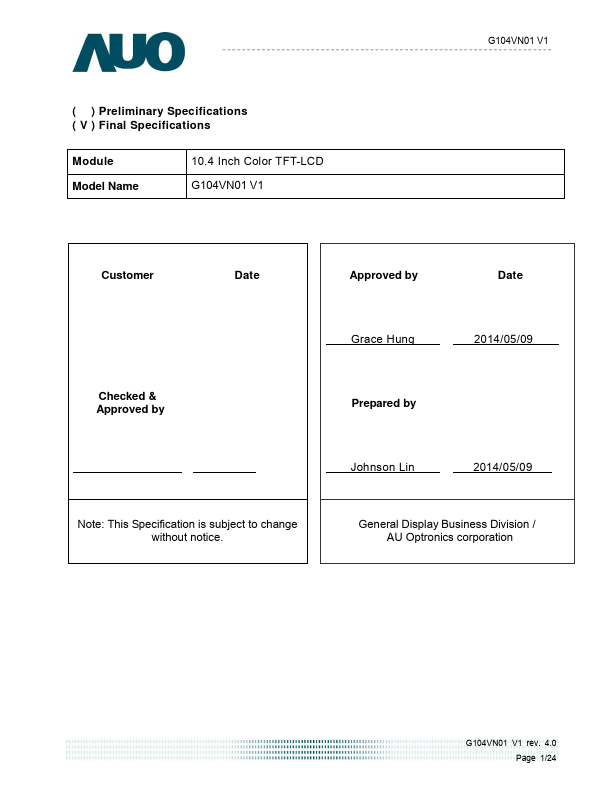

 G104VN01-V1 Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: G104VN01-V1, G104VN01_V1. Please refer to the document for exact specifications by model. |
|
|

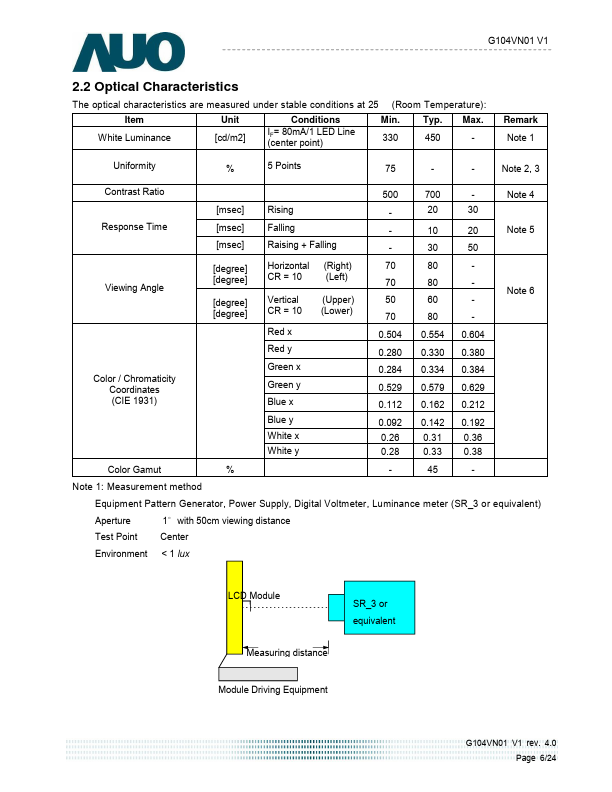

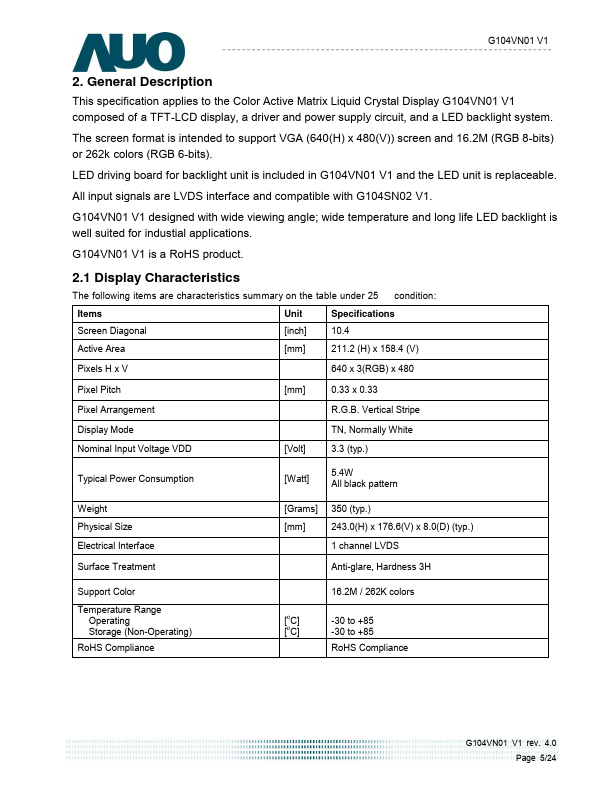

6 2.1 Display Characteristics 6 2.2 Optical Characteristics 7 3. Functional Block Diagram 10 4. Absolute Maximum Ratings 11 4.1 Absolute Ratings of TFT LCD Module 11 4.2 Absolute Ratings of Environment 11 5. Electrical Characteristics 12 5.1 TFT LCD Module 12 5.2 Backlight Unit 13 6. Signal Characteristics 15 6.1 Pixel Format Image 15 6.2 Scanning Direction 15 6.3 TFT-LCD Interface Signal Description 16 6.4 The Input Data Format 16 6.5 TFT-LCD Interface Timing 18 6.6 Power ON/OFF Seq
