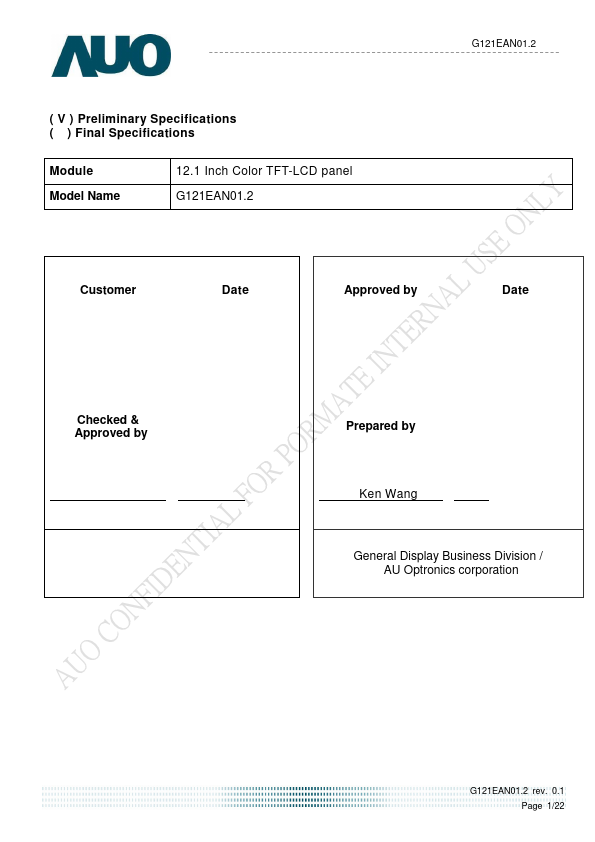

Datasheet Summary
( V ) Preliminary Specifications ( ) Final Specifications
Module Model Name
12.1 Inch Color TFT-LCD panel G121EAN01.2
Customer
Date
Approved by
Date
Checked & Approved by
Prepared by
Ken Wang
General Display Business Division / AU Optronics corporation
G121EAN01.2 rev. 0.1 Page 1/22

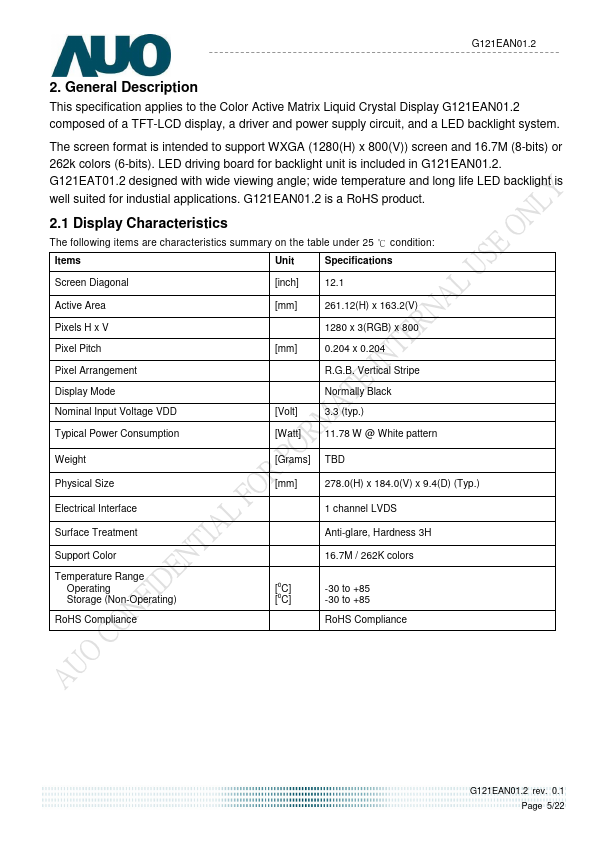

2. General Description
This specification applies to the Color Active Matrix Liquid Crystal Display G121EAN01.2 posed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system.
The screen format is intended to support WXGA (1280(H) x 800(V)) screen and 16.7M (8-bits) or 262k colors (6-bits). LED driving board for backlight unit is included in...
