G133HAN01.0
G133HAN01.0 is FHD Color TFT-LCD manufactured by AU Optronics.

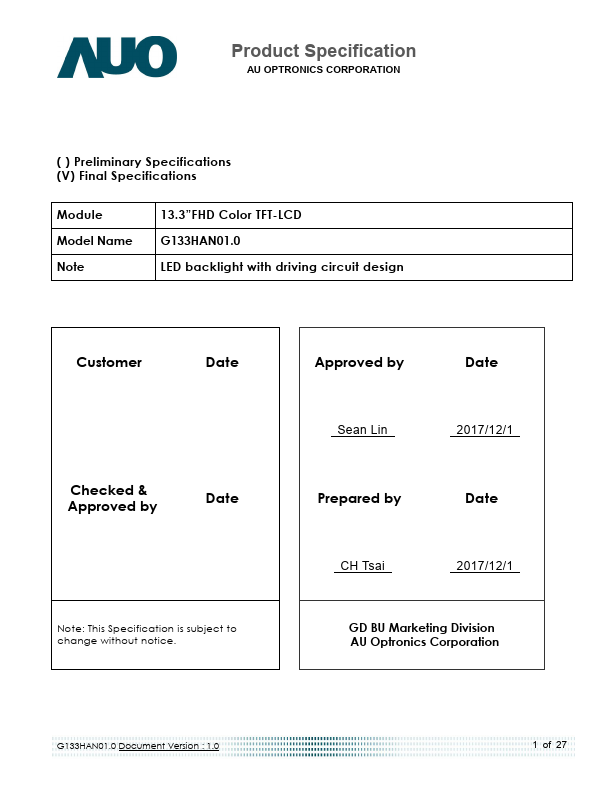

Product Specification
AU OPTRONICS CORPORATION
( ) Preliminary Specifications (V) Final Specifications
Module Model Name Note
13.3”FHD Color TFT-LCD G133HAN01.0 LED backlight with driving circuit design
Customer
Date
Checked & Approved by
Date
Note: This Specification is subject to change without notice.
Approved by
Date
Sean Lin
2017/12/1
Prepared by
Date
CH Tsai
2017/12/1
GD BU Marketing Division AU Optronics Corporation
G133HAN01.0 Document Version : 1.0
1 of 27
Product Specification
AU OPTRONICS CORPORATION
2. General Description
G133HAN01.0 is a Color Active Matrix Liquid Crystal Display posed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 FHD, 1920(H) x1080(V) screen and 16.7M colors (RGB 8-bits data driver) with LED backlight driving circuit.
G133HAN01.0 is designed for a display unit of industrial machine.
2.1 General Specification
The following items are characteristics summary on the table at 25 ˚C condition:
Items
Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Format Display Mode White Luminance ( Center...
