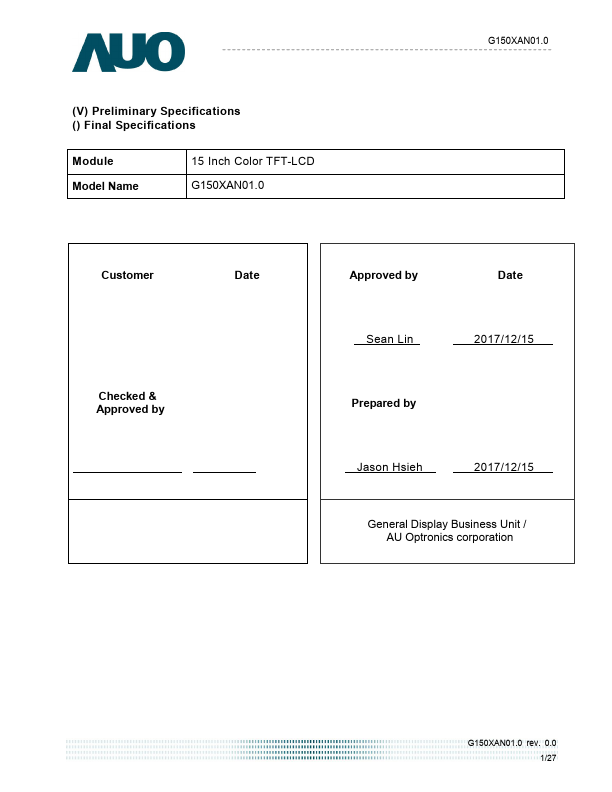

(V) Preliminary Specifications () Final Specifications Module Model Name 15 Inch Color TFT-LCD G150XAN01.0 Customer Date Checked & Approved by Approved by Date Sean Lin 2017/12/15 Prepared by Jason Hsieh 2017/12/15 General Display Business Unit / AU Optronics corporation G150XAN01.0 rev. 0.0 1/27 2. General Description G150XAN01.0 is a Color Active Matrix Liquid Crystal Display posed of a TFT-LCD display, a driver circuit, and a backlight system. The screen format is intended to support XGA (1024(H) x 768(V)) screen and 16.2M (RGB 6+2FRC) colors. All input signals are LVDS interface patible. G150XAN01.0 is designed for industrial display...
