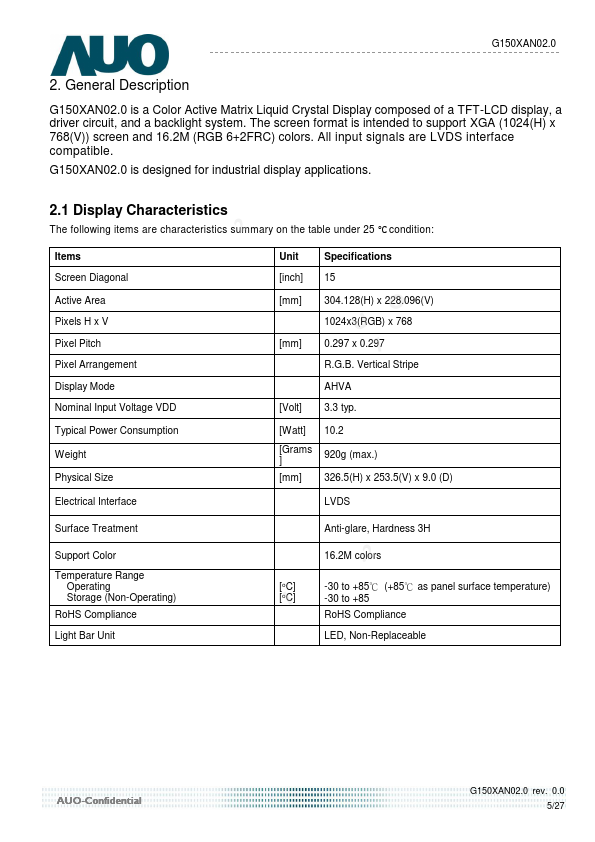

(V) Preliminary Specifications () Final Specifications Module Model Name A E 15 Inch Color TFT-LCD M G150XAN02.0 G150XAN02.0 G150XG03 V Customer Date Checked & Approved by Approved by Date Sean Lin 2018/09/06 Prepared by Jason Hsieh 2018/09/06 General Display Business Unit / AU Optronics corporation AUO-Confidential G150XAN02.0 rev. 0.0 1/27 2. General Description G150XG03 V G150XAN02.0 is a Color Active Matrix Liquid Crystal Display posed of a TFT-LCD display, a driver circuit, and a backlight system. The screen format is intended to support XGA (1024(H) x 768(V)) screen and 16.2M (RGB 6+2FRC) colors. All input signals are LVDS interface patible. G150XA...
