G150XTN03.8 Datasheet | AU Optronics

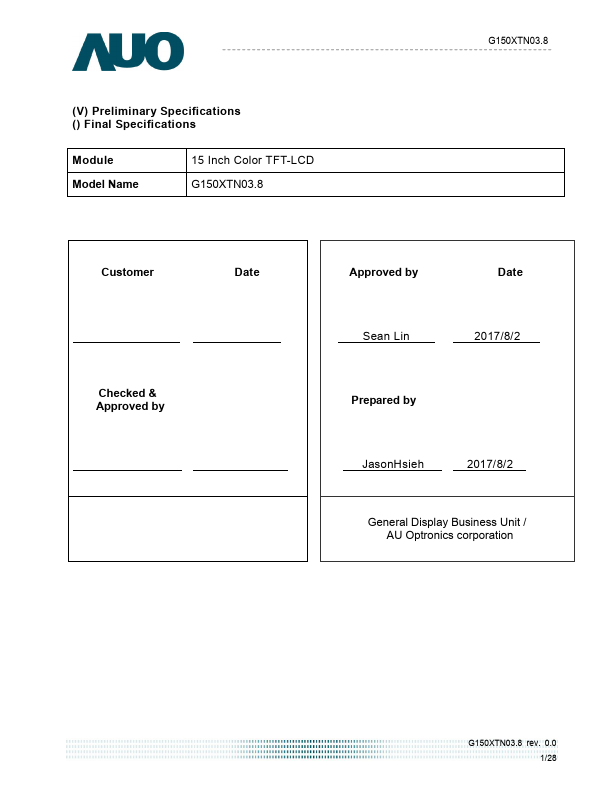

(V) Preliminary Specifications () Final Specifications Module Model Name 15 Inch Color TFT-LCD G150XTN03.8 Customer Date Checked & Approved by Approved by Date Sean Lin 2017/8/2 Prepared by JasonHsieh 201 7/ 8/ 2 General Display Business Unit / AU Optronics corporation G150XTN03.8 rev. 0.0 1/28 2. General Description G150XTN03.8 is a Color Active Matrix Liquid Crystal Display posed of a TFT-LCD display, a driver circuit, and LED backlight system. The screen format is intended to support 4:3 XGA, 1024(H) x768(V) screen and 6+2FRC(16.2M colors) with LED backlight driving circuit. All input signals are eDP (Embedded DisplayPort) interface...
