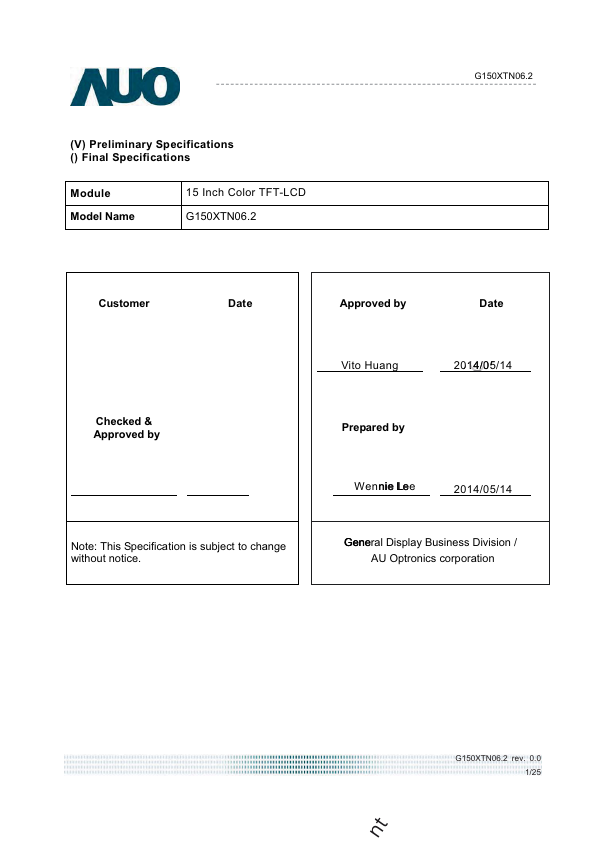

G150XTN06.2
Description
G150XTN06.2 is a Color Active Matrix Liquid Crystal Display posed of a TFT-LCD display, a driver circuit, and a backlight system. The screen format is intended to support XGA (1024(H) x 768(V)) screen and 16.2M or 262K colors. All input signals are LVDS interface patible.
G150XTN06.2 is designed for industrial display applications.

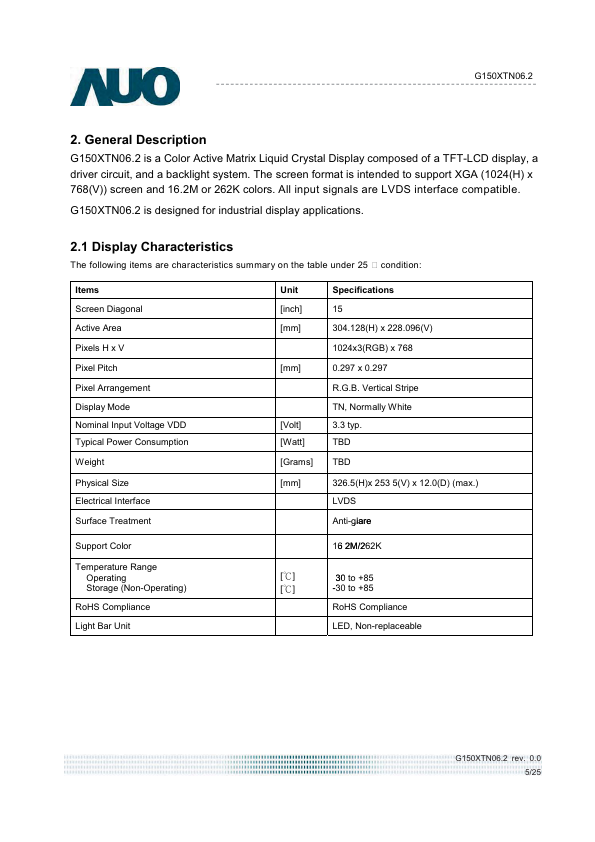

2.1 Display Characteristics
The following items are characteristics summary on the table under 25 condition:
Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD Typical Power Consumption Weight Physical Size Electrical Interface Surface Treatment
Unit [inch] [mm]
[mm]
[Volt] [Watt] [Grams] [mm]
Specifications 15 304.128(H) x 228.096(V) 1024x3(RGB) x 768 0.297 x 0.297 R.G.B. Vertical Stripe TN, Normally White 3.3 typ. TBD TBD 326.5(H)x 253 5(V) x 12.0(D) (max.) LVDS Anti-glare
Support Color
Temperature Range Operating Storage (Non-Operating)
Ro HS pliance
Light Bar Unit
16...
