Datasheet Summary
Product Specification
AU OPTRONICS CORPORATION
( V ) Preliminary Specification ( ) Final Specification
Module Model Name
15.4 Inch Color TFT-LCD G154EVN01.0
Customer
Date
Checked & Approved by
Date
Customer’s sign back page
Approved by
Date
Sean Lin
6/17/2019
Prepared by
Date
Ryan Chen
6/17/2019
General Display Business Division / AU Optronics corporation
G154EVN01.0 rev.0.1 1/27

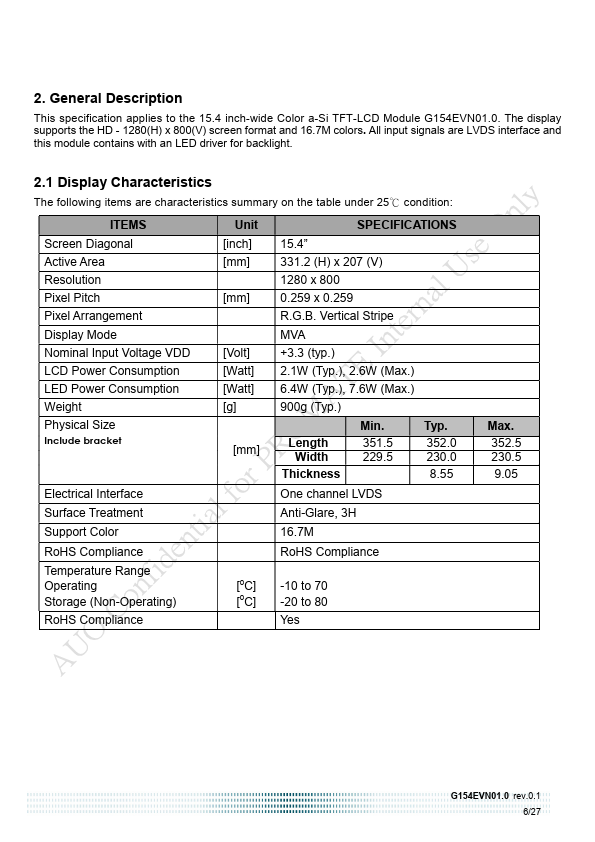

2. General Description
This specification applies to the 15.4 inch-wide Color a-Si TFT-LCD Module G154EVN01.0. The display supports the HD
- 1280(H) x 800(V) screen format and 16.7M colors. All input signals are LVDS interface and this module contains with an LED driver for...
