Datasheet Summary

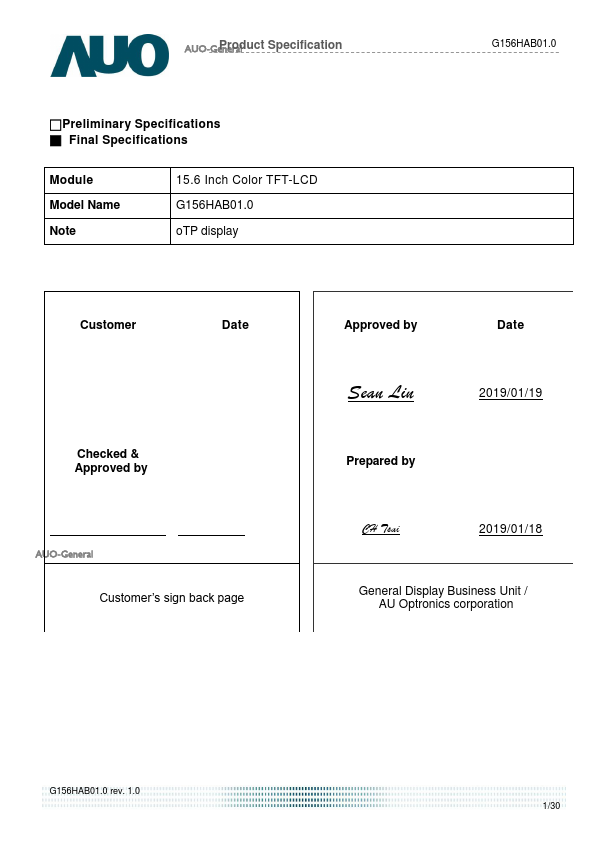

AUO-GePneroradl uct Specification
- Preliminary Specifications
- Final Specifications
Module Model Name Note
15.6 Inch Color TFT-LCD G156HAB01.0 oTP display
Customer
Date
Checked & Approved by
AUO-General
Customer’s sign back page
Approved by
Date
Sean Lin
2019/01/19
Prepared by
CH Tsai
2019/01/18
General Display Business Unit / AU Optronics corporation
G156HAB01.0 rev. 1.0 1/30
AUO-GePneroradl uct Specification

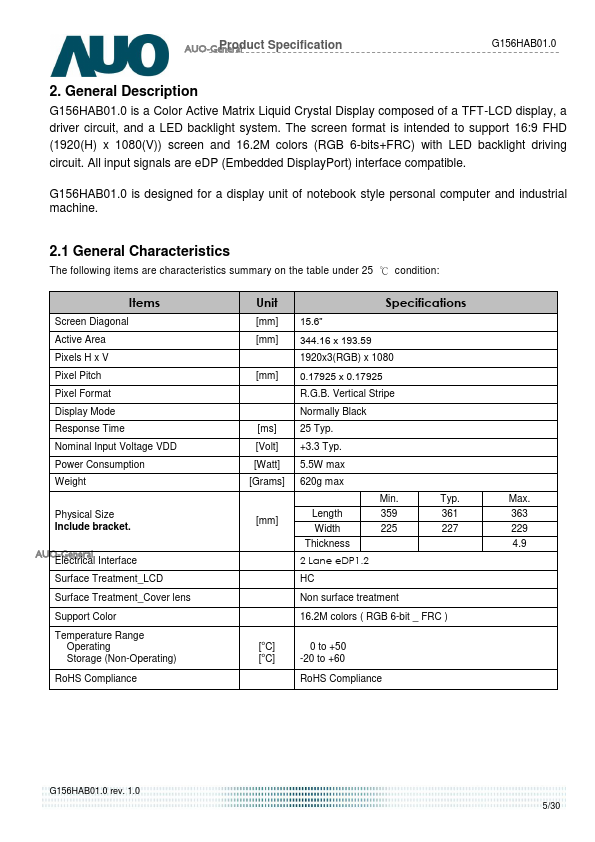

2. General Description
G156HAB01.0 is a Color Active Matrix Liquid Crystal Display posed of a TFT-LCD display, a driver circuit, and a LED backlight system. The screen format is intended to support 16:9 FHD (1920(H) x 1080(V)) screen and...
