G156XTN01.0
Description
This specification applies to the 15.6 inch-wide Color a-Si TFT-LCD Module G156XTN01. The display supports the HD
- 1366(H) x 768(V) screen format and 16.7M colors (RGB 6-bits+3-FRC data). All input signals are LVDS interface and this module contains with an LED driver for backlight.

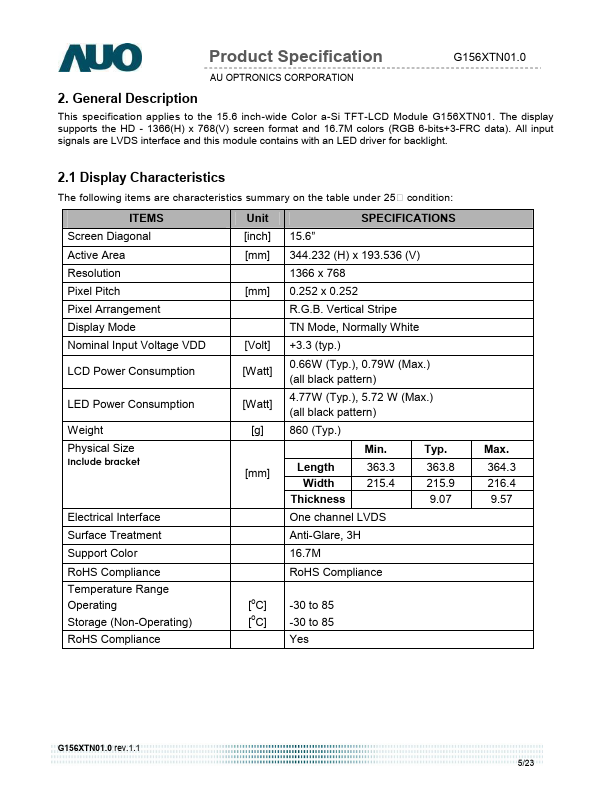

2.1 Display Characteristics
The following items are characteristics summary on the table under 25 condition:
ITEMS Screen Diagonal Active Area Resolution Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD
LCD Power Consumption
LED Power Consumption
Weight Physical Size
Include bracket
Electrical Interface Surface Treatment Support Color Ro HS pliance Temperature Range Operating Storage (Non-Operating) Ro HS pliance
Unit [inch] [mm] [mm]
[Volt] [Watt] [Watt]
[g]
[mm]
SPECIFICATIONS
15.6”
344.232 (H) x 193.536 (V)
1366 x 768
0.252 x 0.252
R.G.B. Vertical Stripe
TN Mode, Normally White
+3.3 (typ.)
0.66W (Typ.), 0.79W (Max.) (all black pattern)
4.77W (Typ.), 5.72 W...
