G156XTN02.1
Description

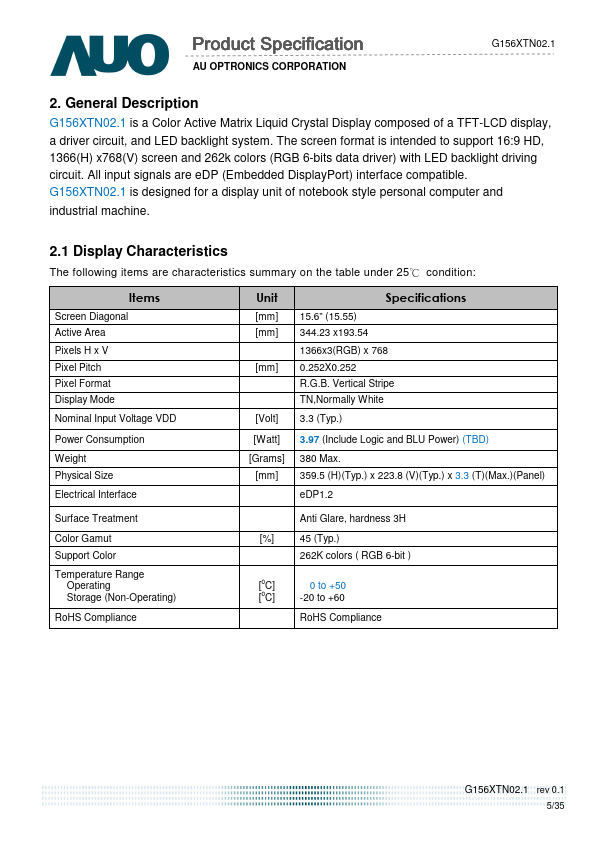

G156XTN02.1 is a Color Active Matrix Liquid Crystal Display posed of a TFT-LCD display, a driver circuit, and LED backlight system. The screen format is intended to support 16:9 HD, 1366(H) x768(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are e DP (Embedded Display Port) interface patible. G156XTN02.1 is designed for a display unit of notebook style personal puter and industrial machine.
2.1 Display Characteristics
℃ The following items are characteristics summary on the table under 25 condition:
Items
Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Format Display Mode Nominal Input Voltage VDD
Power Consumption Weight Physical Size Electrical Interface
Unit
[mm] [mm]
[mm]
[Volt]
Specifications
15.6” (15.55) 344.23 x193.54 1366x3(RGB) x 768 0.252X0.252 R.G.B. Vertical Stripe TN,Normally White 3.3 (Typ.)
[Watt] [Grams]
[mm]
3.97 (Include Logic and BLU Power) (TBD) 380 Max. 359.5 (H)(Typ.) x 223.8...
