G156XW01-V1 - Color TFT-LCD

This page provides the datasheet information for the G156XW01-V1, a member of the G156XW01_V1 Color TFT-LCD family.

Description

6 2.1 Display Characteristics 6 2.2 Optical Characteristics 7 3.0 Functional Block Diagram 11 4.0 Absolute Maximum Ratings12 4.1 TFT LCD Module 12 4.2 Absolute Ratings of Environment 12 5.0 Electrical characteristics 13 5.1 TFT LCD Module 13 5.1.1 Power Specification 13 5.1.2 Signal Electrical

📥 Download Datasheet

Datasheet preview – G156XW01-V1

Datasheet Details

Part number G156XW01-V1
Manufacturer AUO
File Size 559.25 KB
Description Color TFT-LCD
Datasheet download datasheet G156XW01-V1 Datasheet
Additional preview pages of the G156XW01-V1 datasheet.

📁 Similar Datasheet

  • G1561 - Rail to Rail Input-Output VCOM Buffer (GMT)
  • G1562 - Single Rail-to-Rail Operational Amplifiers (GMT)
  • G1563 - Dual Rail-to-Rail Operational Amplifiers (GMT)
  • G1564 - Quadruple Rail-to-Rail Operational Amplifiers (GMT)
  • G156BGE-L01 - TFT LCD (Innolux)
  • G156BGE-L03 - TFT LCD Module (INNOLUX)
  • G156HCE-E01 - TFT LCD Module (INNOLUX)
  • G156HCE-L01 - TFT LCD (INNOLUX)
  • G156HCE-LN1 - TFT LCD (INNOLUX)
  • G1505S-2WR2 - DC/DC Converter (MORNSUN)
Other Datasheets by AUO

Full PDF Text Transcription

Click to expand full text

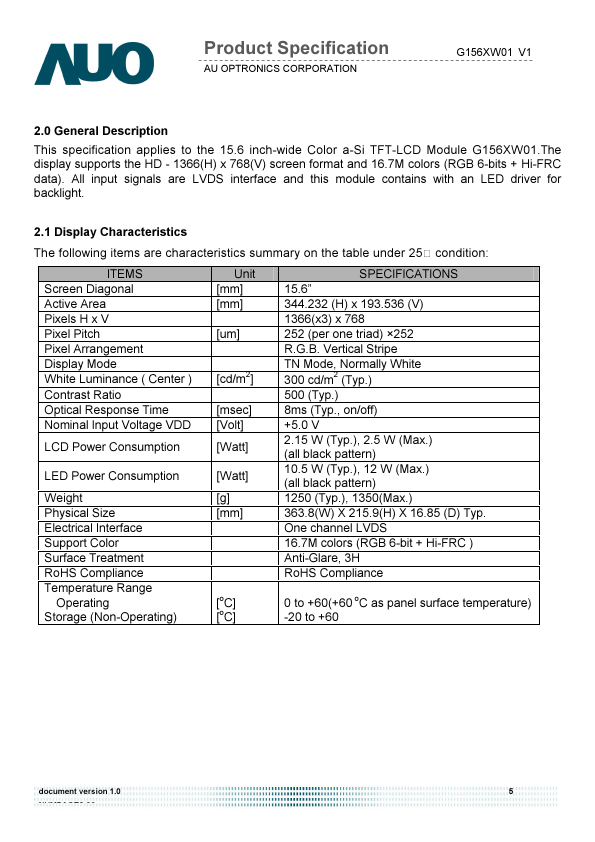

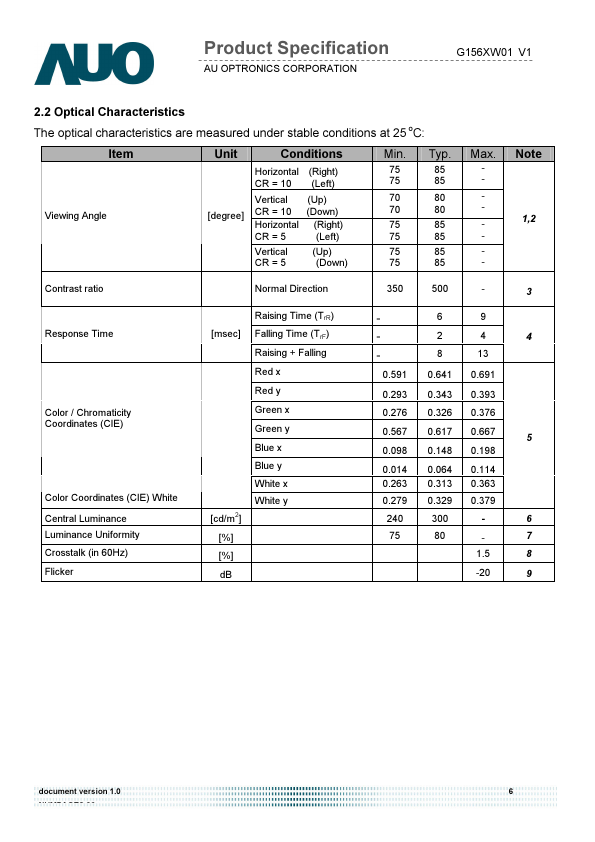

Product Specification AU OPTRONICS CORPORATION ( ) Preliminary Specification ( V ) Final Specification Module Model Name 15.6” Color TFT-LCD G156XW01 V1 G156XW01 V1 Customer Date Approved by Note: This Specification is subject to change without notice. Approved by Date Ginger Lin 2023/02/09 Prepared by BinJou Huang 2023/02/09 Audio-Video Business Unit / AU Optronics corporation Document version 1.8 1 Product Specification AU OPTRONICS CORPORATION Contents G156XW01 V1 1.0 Handling Precautions.............................................................5 2.0 General Description ...............................................................6 2.1 Display Characteristics ...........................................................................................................
