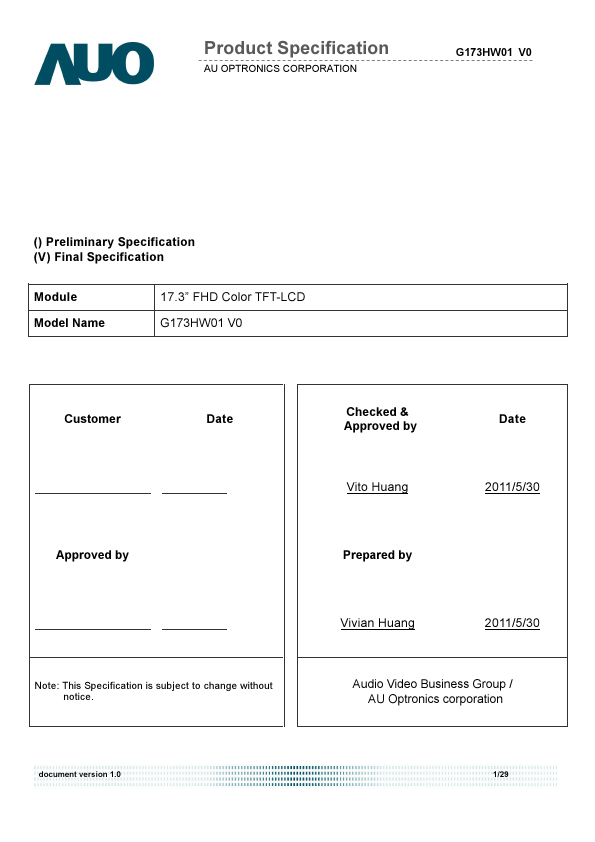

Product Specification AU OPTRONICS CORPORATION G173HW01 V0 () Preliminary Specification (V) Final Specification Module Model Name 17.3” FHD Color TFT-LCD G173HW01 V0 Customer Date Approved by Note: This Specification is subject to change without notice. Checked & Approved by Vito Huang Date 2011/5/30 Prepared by Vivian Huang 2011/5/30 Audio Video Business Group / AU Optronics corporation document version 1.0 1/29 Product Specification AU OPTRONICS CORPORATION G173HW01 V0 2. General Description G173HW01 V0 is a Color Active Matrix Liquid Crystal Display posed of a TFT-LCD panel, a LED driver circuit, and a LED backlight system. The screen format is intended to support the FHD (1920(H) x 1080(V)) screen and 16.7M colors (RGB 6-bits + Hi FRC data). All input signals are LVDS interface patible. Inverter card of backlight is not included. 2.1 Display Characteristics The following items are characteristics summary on the table under 25 ℃ condition: Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode White Luminance Contrast Ratio Optical Response Time Nominal Input Voltage VDD Power Consumption Weight Physical Size (H x V x D) Electrical Interface Surface Treatment Support Color Temperature Range (Ta) Operating Storage (Non-Operating) Ro HS...
