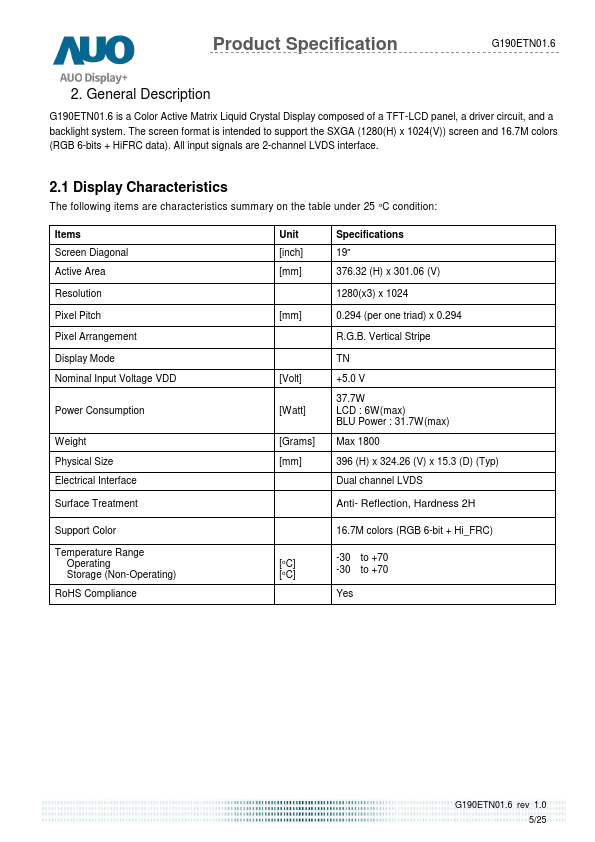

G190ETN01.601 - Color TFT-LCD

Product Overview

📥 Download Datasheet

Datasheet preview – G190ETN01.601

Datasheet Details

Part number G190ETN01.601
Manufacturer AUO
File Size 843.84 KB
Description Color TFT-LCD
Datasheet download datasheet G190ETN01.601 Datasheet

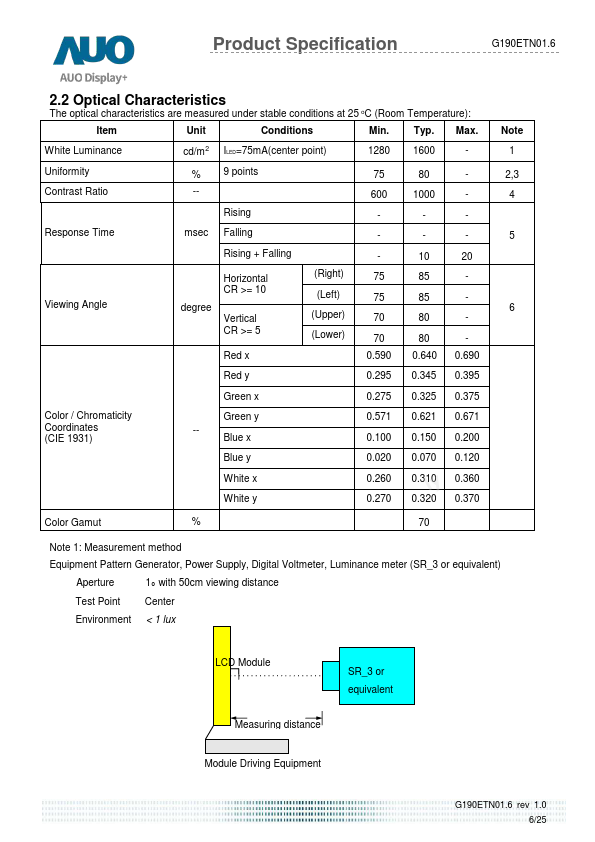

Additional preview pages of the G190ETN01.601 datasheet.

Product details

Description

2.1 Display Characteristics 5 2.2 Optical Characteristics 6 3. Functional Block Diagram9 4. Absolute Maximum Ratings 10 or 4.1 Absolute Ratings of TFT LCD Module 10 4.2 Absolute Ratings of Environment 10 5. Electrical Characteristics 11 nl 5.1 TFT LCD Module 11 5.2 Backlight Unit 13 6. Signal Characteristic 15 6.1 Pixel Format Image 15 6.2 Scanning Direction! 。 6.3 Signal Description 16 6.4 The Input Data Format 18 6.5 Interface Timing 19 For 6.6 Power ON/OFF Sequence 21 7. Reliability
