G215HVN01.1 - Color TFT-LCD

Datasheet Summary

Description

3.

Functional Block Diagram 10 4.

5.

📥 Download Datasheet

Datasheet preview – G215HVN01.1

Datasheet Details

Part number G215HVN01.1
Manufacturer AUO
File Size 530.38 KB
Description Color TFT-LCD
Datasheet download datasheet G215HVN01.1 Datasheet
Additional preview pages of the G215HVN01.1 datasheet.

📁 Similar Datasheet

  • G215HCJ-L01 - TFT LCD (INNOLUX)
  • G215HCJ-L02 - TFT LCD (INNOLUX)
  • G2105 - 7-Channel DC-DC Converter (Global Mixed-mode Technology)
  • G2109 - Photoflash Capacitor Charger (Global Mixed-mode Technology)
  • G2113 - CMOS Positive Voltage Regulator (GTM)
  • G2119 - GaAsP photodiode (Hamamatsu Corporation)
  • G2120 - Synchronous Step Down (Global Mixed-mode Technology)
  • G2123 - CMOS Positive Voltage Regulator (GTM)
  • G2129 - 1-2-4-Bit Bidirectional Voltage-Level Translator (Global Mixed-mode Technology)
  • G2132 - Photoflash Capacitor Charger (Global Mixed-mode Technology)
Other Datasheets by AUO

Full PDF Text Transcription

Click to expand full text

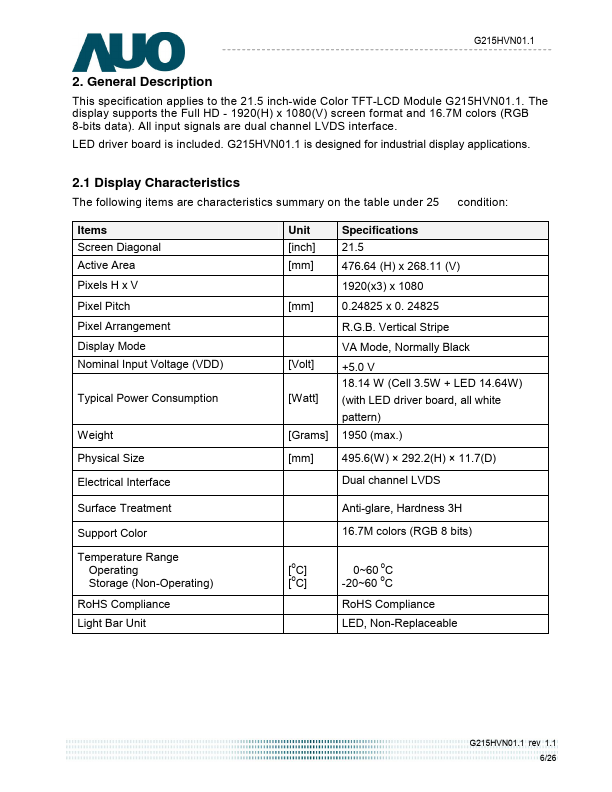

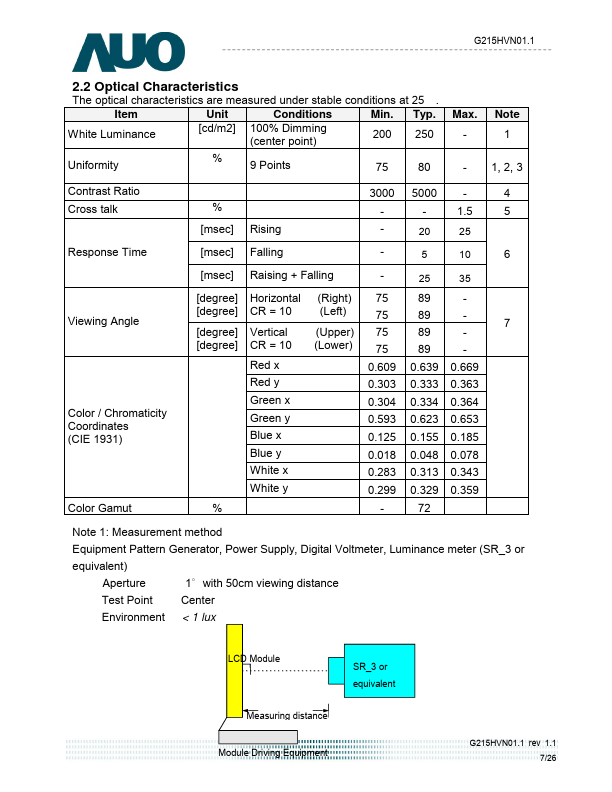

□ Preliminary Specification ■ Final Specification Module Model Name 21.5” Color TFT-LCD G215HVN01.1 G215HVN01.1 Customer Date Approved by Date Checked & Approved by Note: This Specification is subject to change without notice. Crystal Hsieh 2018/05/24 Prepared by Daniel Chang 2018/05/24 Audio-Video Business Unit / AU Optronics corporation G215HVN01.1 rev 1.2 1/26 G215HVN01.1 Contents 1. Operating Precautions ..................................................................................... 5 2. General Description ......................................................................................... 6 2.1 Display Characteristics ...................................................................................................... 6 2.2 Optical Characteristics ........
