G270ZAN01.1
G270ZAN01.1 is 27.0 Inch Color TFT-LCD manufactured by AU Optronics.
Product Specification
AU OPTRONICS CORPORATION
( v ) Preliminary Specifications ( ) Final Specifications
Module Model Name
27.0 Inch Color TFT-LCD G270ZAN01.1
Customer
Date
Checked & Approved by
Date
Customer’s sign back page
Approved by
Date
Crystal Hsieh 2017. 04. 05
Prepared by
Date
Hsin Yin Lee
2017. 04. 05
General Display Business Division / AU Optronics corporation
G270ZAN01.1 rev.0.1 1/30
Product Specification
AU OPTRONICS CORPORATION
2. General Description

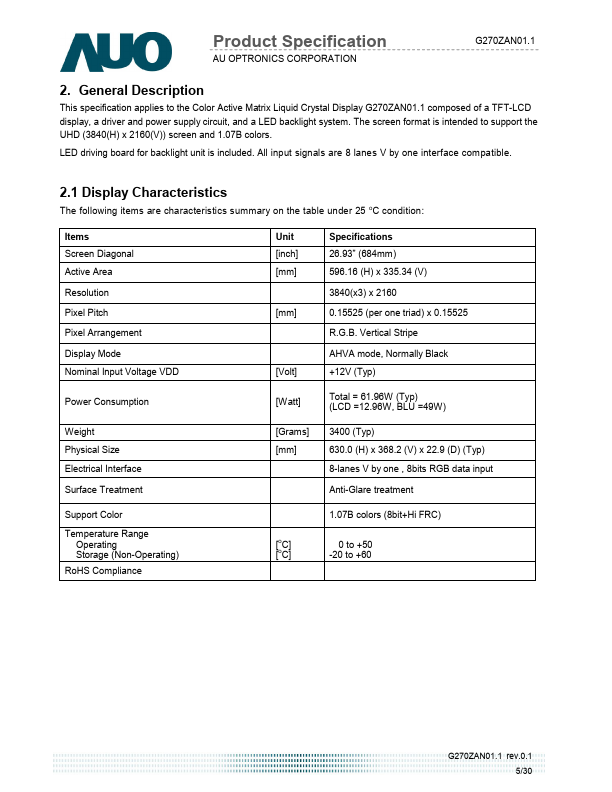

This specification applies to the Color Active Matrix Liquid Crystal Display G270ZAN01.1 posed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system. The screen format is intended to support the UHD (3840(H) x 2160(V)) screen and 1.07B colors.
LED driving board for backlight unit is included. All input signals are 8 lanes V by one interface patible.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 o C condition:
Items Screen Diagonal Active Area Resolution Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD
Unit [inch] [mm]
[mm]

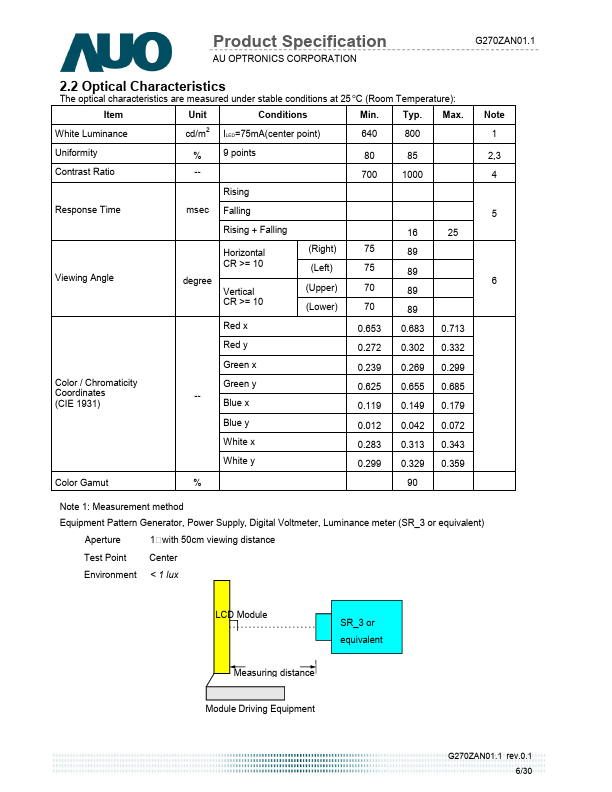

[Volt]...
