G286HAN01.0
G286HAN01.0 is Color TFT-LCD manufactured by AU Optronics.
Product Specification
AU OPTRONICS CORPORATION
- Preliminary Specification
- Final Specification
Module Model Name
28.6” Color TFT-LCD G286HAN01.0
Customer
Date
Approved by
Date
Crystal Hsieh
2016/08/17
Checked & Approved by
Prepared by
Jimmy Tsai
2016/08/17
Note: This Specification is subject to change without notice.
General Display Business Division / AU Optronics corporation document version 0.4
Product Specification
AU OPTRONICS CORPORATION

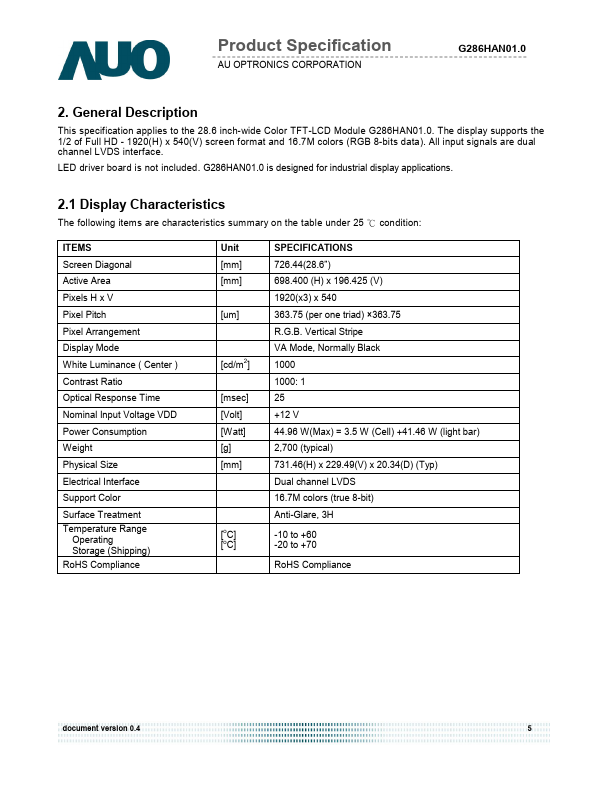

2. General Description
This specification applies to the 28.6 inch-wide Color TFT-LCD Module G286HAN01.0. The display supports the 1/2 of Full HD
- 1920(H) x 540(V) screen format and 16.7M colors (RGB 8-bits data). All input signals are dual channel LVDS interface.
LED driver board is not included. G286HAN01.0 is designed for industrial display applications.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 ℃ condition:
ITEMS Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode White Luminance ( Center ) Contrast Ratio Optical Response Time Nominal Input Voltage VDD Power Consumption Weight Physical Size Electrical Interface Support Color Surface Treatment Temperature Range
Operating Storage (Shipping) Ro HS pliance
Unit [mm]...
