L170E3-7 - SXGA Color TFT-LCD Module

Description

2.1 Display Characteristics 2.2 Functional Block Diagram 2.3 Optical Characteristics 2.4 Pixel format image 3.0 Electrical characteristics 3.1 Absolute Maximum Ratings 3.2 Connectors 3.3 Signal Pin 3.4 Signal Description 3.5 Signal Electrical Characteristics 3.6 Interface Timing 3.6.1 Timing Charact

Features

  • 4 One step solution for LCD / PDP / OLED panel.

📥 Download Datasheet

Datasheet preview – L170E3-7

Datasheet Details

Part number L170E3-7
Manufacturer AUO
File Size 726.36 KB
Description SXGA Color TFT-LCD Module
Datasheet download datasheet L170E3-7 Datasheet
Additional preview pages of the L170E3-7 datasheet.

📁 Similar Datasheet

  • L1706 - LCD Color Monitor SERVICE MANUAL (HP)
  • L1720B - COLOR MONITOR SERVICE MANUAL (LG)
  • L1720BL-ALxxR - COLOR MONITOR SERVICE MANUAL (LG)
  • L1753S - COLOR MONITOR SERVICE MANUAL (LG)
Other Datasheets by AUO

Full PDF Text Transcription

Click to expand full text

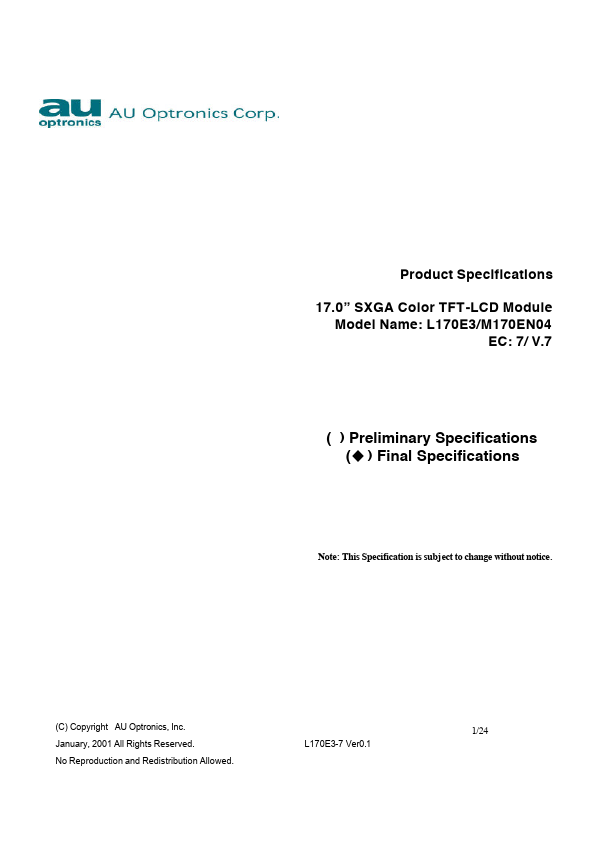

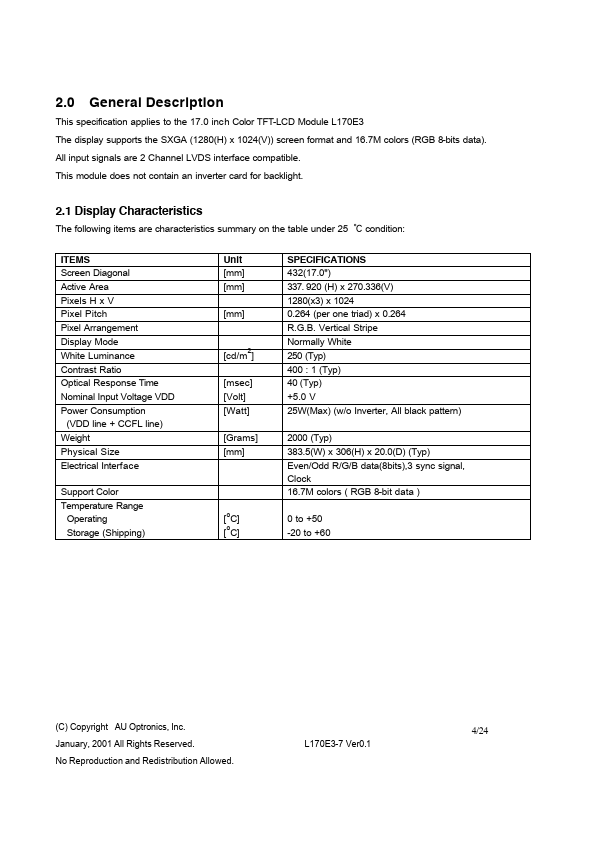

Global LCD Panel Exchange Center www.panelook.com Product Specifications 17.0” SXGA Color TFT-LCD Module Model Name: L170E3/M170EN04 EC: 7/ V.7 ( ) Preliminary Specifications (‹) Final Specifications Note: This Specification is subject to change without notice. i Contents (C) Copyright AU Optronics, Inc. January, 2001 All Rights Reserved. No Reproduction and Redistribution Allowed. L170E3-7 Ver0.2 1/24 One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com ii Record of Revision 1.0 Handling Precautions 2.0 General Description 2.1 Display Characteristics 2.2 Functional Block Diagram 2.3 Optical Characteristics 2.4 Pixel format image 3.0 Electrical characteristics 3.
