Datasheet Summary

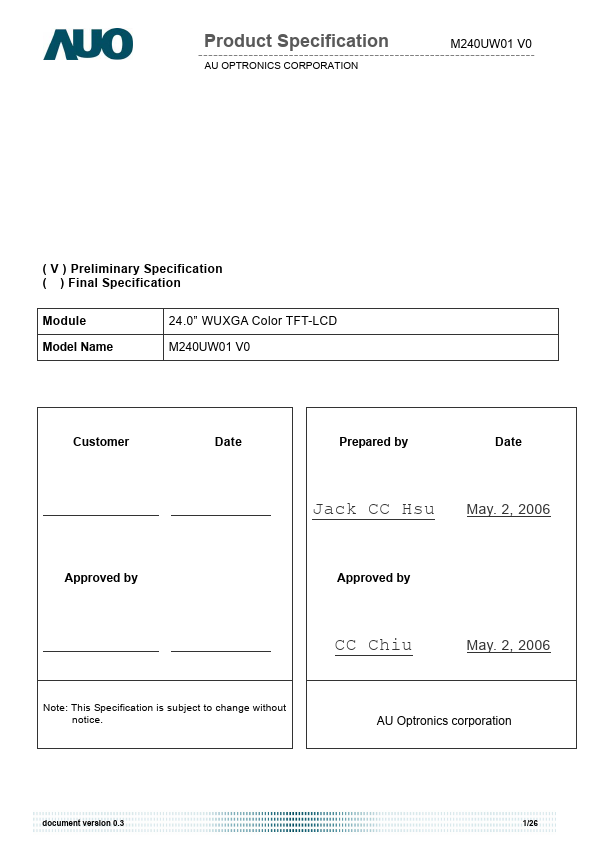

Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0
( V ) Preliminary Specification ( ) Final Specification
Module Model Name
24.0” WUXGA Color TFT-LCD M240UW01 V0
Customer
Date
Prepared by
Date
Jack CC Hsu May. 2, 2006
Approved by
Approved by
CC Chiu
May. 2, 2006
Note: This Specification is subject to change without notice.
AU Optronics corporation document version 0.3
1/26
Product Specification
AU OPTRONICS CORPORATION
M240UW01 V0

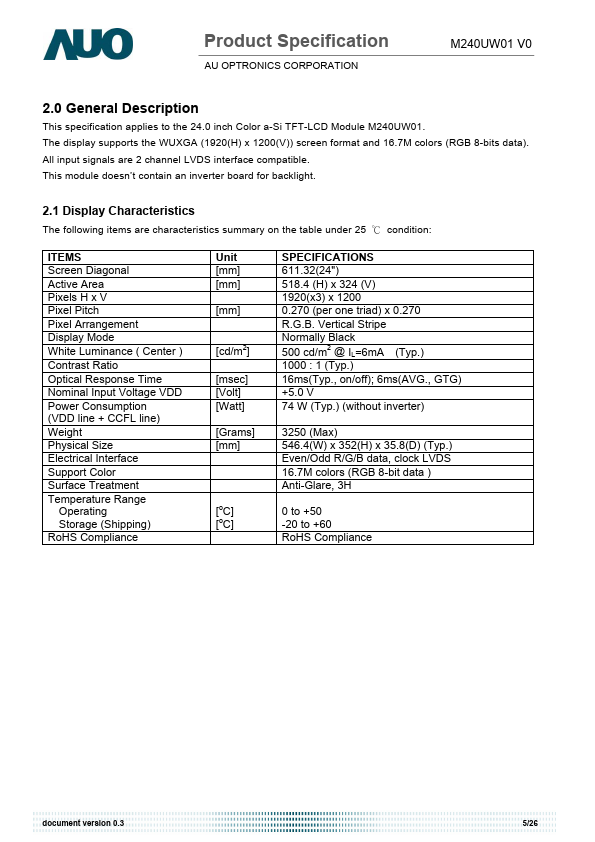

2.0 General Description
This specification applies to the 24.0 inch Color a-Si TFT-LCD Module M240UW01. The display supports the WUXGA (1920(H) x 1200(V)) screen format and 16.7M colors (RGB 8-bits data). All input signals are 2...
