P550HVN12.0

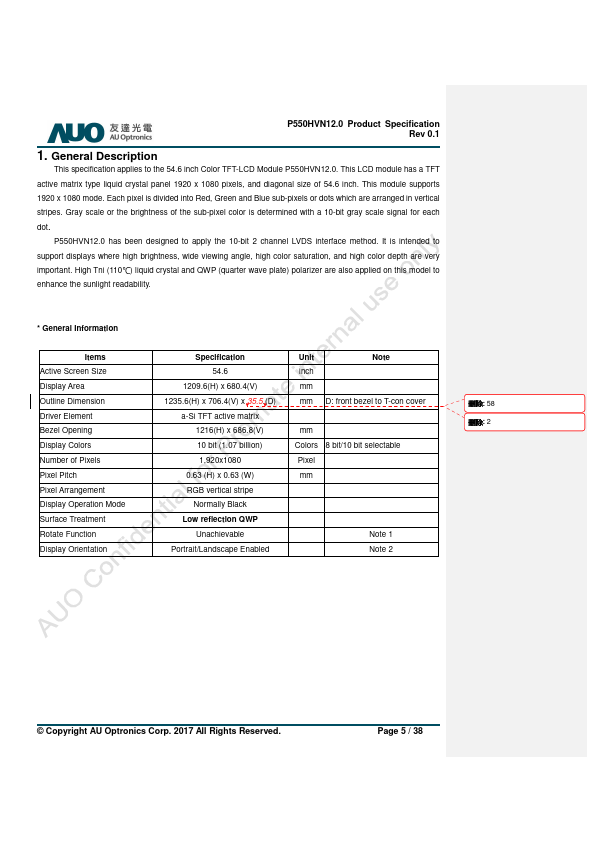

Description
This specification applies to the 54.6 inch Color TFT-LCD Module P550HVN12.0. This LCD module has a TFT active matrix type liquid crystal panel 1920 x 1080 pixels, and diagonal size of 54.6 inch. This module supports 1920 x 1080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
P550HVN12.0 has been designed to apply the 10-bit 2 channel LVDS interface method. It is intended to support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very
℃ important. High Tni (110 ) liquid crystal and QWP (quarter wave plate) polarizer are also applied on this model to enhance the sunlight readability.
- General Information
Items Active Screen Size Display Area Outline Dimension Driver Element Bezel Opening Display Colors Number of Pixels Pixel Pitch Pixel Arrangement...
