HSMC-A101-R80J1 Datasheet Surface Mount LED Indicator

Manufacturer: Avago Technologies (now Broadcom)

Download the HSMC-A101-R80J1 datasheet PDF. This datasheet also includes the HSMS-A100-J00J1 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

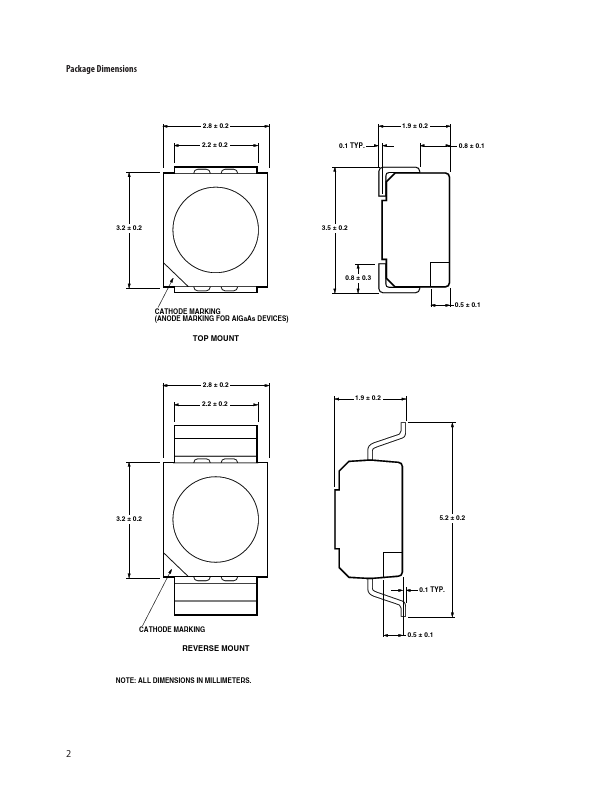

HSMC-A101-R80J1 surface mount led indicator by Avago Technologies (now Broadcom) - Datasheet Preview — Note: The manufacturer provides a single datasheet file (HSMS-A100-J00J1-AVAGO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	HSMC-A101-R80J1
Manufacturer	Avago Technologies (now Broadcom)
File Size	260.17 KB
Description	Surface Mount LED Indicator
Download	HSMC-A101-R80J1 Download (PDF)

General Description

This family of SMT LEDs is packaged in the industry standard PLCC-2 package.

These SMT LEDs have high reliability performance and are designed to work under a wide range of environmental conditions.

This high reliability

Overview

HSMx-A10x-xxxxx PLCC-2 Surface Mount LED Indicator Data Sheet.

Key Features

Industry standard PLCC-2 package.
High reliability LED package.
High brightness using AlInGaP and InGaN dice technologies.
Available in full selection of colors.
Super wide viewing angle at 120˚.
Available in 8 mm carrier tape on 7 inch reel (2000 pieces).
Compatible with both IR and TTW soldering process.
