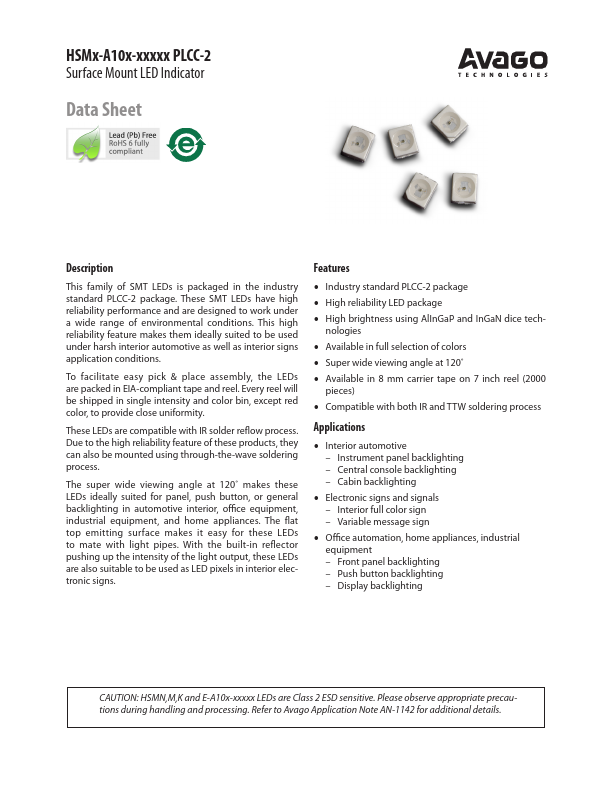

HSMG-A100-J02J1 Overview
This family of SMT LEDs is packaged in the industry standard PLCC-2 package. These SMT LEDs have high reliability performance and are designed to work under a wide range of environmental conditions.
HSMG-A100-J02J1 Key Features
- Industry standard PLCC-2 package
- High reliability LED package
- High brightness using AlInGaP and InGaN dice technologies
- Available in full selection of colors
- Super wide viewing angle at 120˚
- Available in 8 mm carrier tape on 7 inch reel (2000 pieces)
- patible with both IR and TTW soldering process
