HSMK-A100-S00J1 - Surface Mount LED Indicator

Download the HSMK-A100-S00J1 datasheet PDF. This datasheet also covers the HSMS-A100-J00J1 variant, as both devices belong to the same surface mount led indicator family and are provided as variant models within a single manufacturer datasheet.

Description

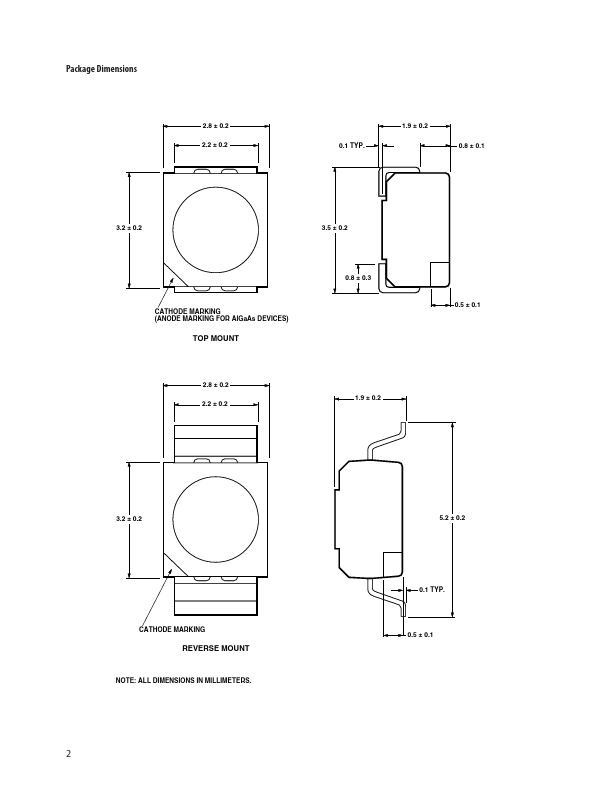

This family of SMT LEDs is packaged in the industry standard PLCC-2 package.

These SMT LEDs have high reliability performance and are designed to work under a wide range of environmental conditions.

Features

  • Industry standard PLCC-2 package.
  • High reliability LED package.
  • High brightness using AlInGaP and InGaN dice technologies.
  • Available in full selection of colors.
  • Super wide viewing angle at 120˚.
  • Available in 8 mm carrier tape on 7 inch reel (2000 pieces).
  • Compatible with both IR and TTW soldering process.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HSMS-A100-J00J1-AVAGO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HSMK-A100-S00J1
Manufacturer AVAGO
File Size 260.17 KB
Description Surface Mount LED Indicator
Datasheet download datasheet HSMK-A100-S00J1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HSMK-A10x (HSMx-A10x) Surface Mount LED Indicator Agilent
HSM101 SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER (VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere) Rectron Semiconductor
HSM101 TECHNICAL SPECIFICATIONS OF SURFACE MOUNT HIGH EFFICIENCY RECTIFIER Dc Components
HSM102 SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER (VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere) Rectron Semiconductor
HSM102 TECHNICAL SPECIFICATIONS OF SURFACE MOUNT HIGH EFFICIENCY RECTIFIER Dc Components

Other Datasheets by AVAGO

Part Number Description
HSMK-A100-S8WJ1 Surface Mount LED Indicator
HSMK-A101-R00J1 Surface Mount LED Indicator
HSMK-A101-R4WJ1 Surface Mount LED Indicator
HSMA-A100-Q00J1 Surface Mount LED Indicator
HSMA-A100-R45J1 Surface Mount LED Indicator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
HSMx-A10x-xxxxx PLCC-2 Surface Mount LED Indicator Data Sheet Description This family of SMT LEDs is packaged in the industry standard PLCC-2 package. These SMT LEDs have high reliability performance and are designed to work under a wide range of environmental conditions. This high reliability feature makes them ideally suited to be used under harsh interior automotive as well as interior signs application conditions. To facilitate easy pick & place assembly, the LEDs are packed in EIA-compliant tape and reel. Every reel will be shipped in single intensity and color bin, except red color, to provide close uniformity. These LEDs are compatible with IR solder reflow process.
