HSMM-A101-R8PJ1 Datasheet PDF - AVAGO Surface Mount LED Indicator Specs

HSMM-A101-R8PJ1 - Surface Mount LED Indicator

This page provides the datasheet information for the HSMM-A101-R8PJ1, a member of the HSMS-A100-J00J1 Surface Mount LED Indicator family.

Datasheet Summary

Description

This family of SMT LEDs is packaged in the industry standard PLCC-2 package.

These SMT LEDs have high reliability performance and are designed to work under a wide range of environmental conditions.

Features

Industry standard PLCC-2 package.
High reliability LED package.
High brightness using AlInGaP and InGaN dice technologies.
Available in full selection of colors.
Super wide viewing angle at 120˚.
Available in 8 mm carrier tape on 7 inch reel (2000 pieces).
Compatible with both IR and TTW soldering process.

Datasheet Details

Part number	HSMM-A101-R8PJ1
Manufacturer	AVAGO
File Size	260.17 KB
Description	Surface Mount LED Indicator
Datasheet	HSMM-A101-R8PJ1 Datasheet

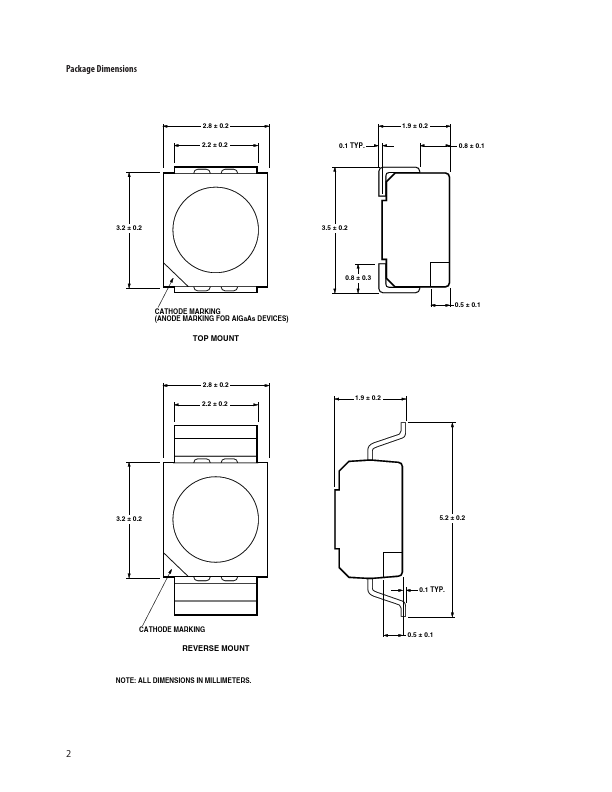

Additional preview pages of the HSMM-A101-R8PJ1 datasheet.

📁 Similar Datasheet

HSMM-A10x - (HSMx-A10x) Surface Mount LED Indicator (Agilent)

HSMM-C110 - (HSMx-C110/170/190/191/150) SMT Chip LED (Agilent Technologies)

HSMM-C120 - (HSMx-C120) Right Angle Chip LED (Agilent Technologies)

HSMM-C150 - (HSMx-C110/170/190/191/150) SMT Chip LED (Agilent Technologies)

HSMM-C170 - (HSMx-C110/170/190/191/150) SMT Chip LED (Agilent Technologies)

HSMM-C190 - (HSMx-C110/170/190/191/150) SMT Chip LED (Agilent Technologies)

HSMM-C191 - (HSMx-C110/170/190/191/150) SMT Chip LED (Agilent Technologies)

HSMM-C540 - (HSMx-C540) Oval Lens High Performance Surface Mount LEDs (Hewlett-Packard)

HSM101 - SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER (VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere) (Rectron Semiconductor)

HSM101 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT HIGH EFFICIENCY RECTIFIER (Dc Components)

Full PDF Text Transcription

Click to expand full text

HSMx-A10x-xxxxx PLCC-2 Surface Mount LED Indicator Data Sheet Description This family of SMT LEDs is packaged in the industry standard PLCC-2 package. These SMT LEDs have high reliability performance and are designed to work under a wide range of environmental conditions. This high reliability feature makes them ideally suited to be used under harsh interior automotive as well as interior signs application conditions. To facilitate easy pick & place assembly, the LEDs are packed in EIA-compliant tape and reel. Every reel will be shipped in single intensity and color bin, except red color, to provide close uniformity. These LEDs are compatible with IR solder reflow process.
