AZ Displays AGM2412A-FLB-FTH
LCD
| Part No. | AGM2412A-FLB-FTH |
|---|---|
| Datasheet | AGM2412A-FLB-FTH Download |
| Manufacturer |  AZ Displays |
| Description | LCD |
| Buy | Stock & Price |

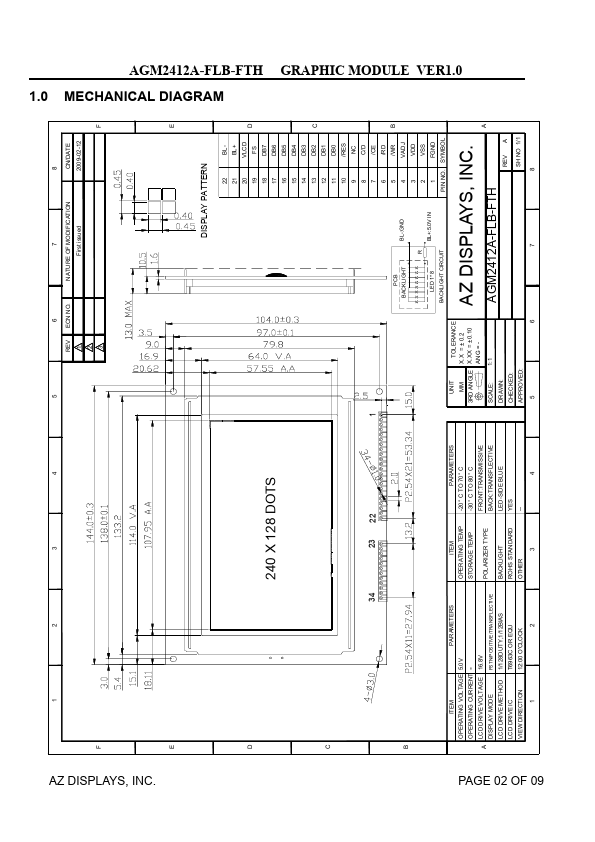

ABSOLUTE MAXIMUM RATINGS

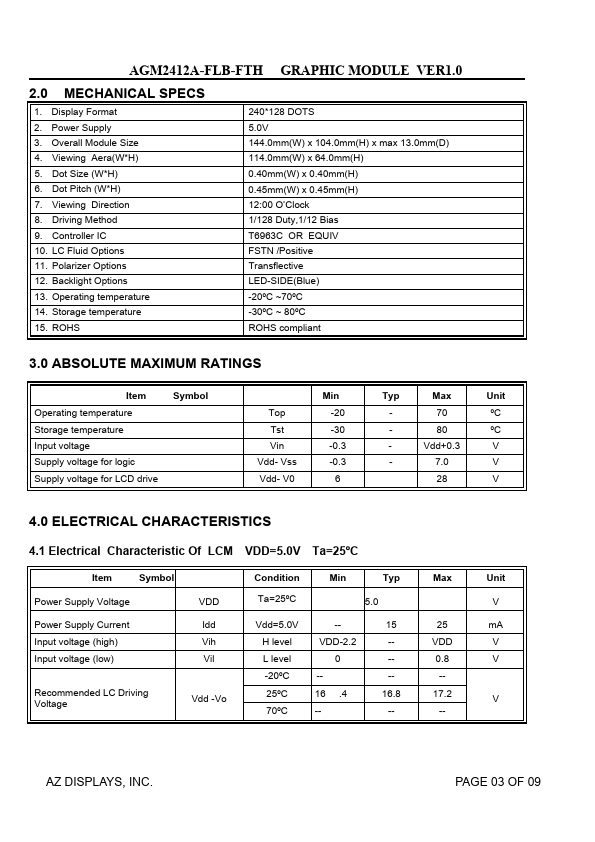

Item Operating temperature Storage temperature Input voltage Supply voltage for logic Supply voltage for LCD drive Symbol Top Tst Vin Vdd- Vss Vdd- V0 Min -20 -30 -0.3 -0.3 6 Typ Max Unit - 70 ºC - 80 ºC - Vdd+0.3 V - 7.0 V 28 V 4.0ELECTRICAL CHARACTERISTICS
4.1 Electrical Characteristic Of LCM VDD=5.0V Ta=25ºC Item Symbol Condition Min Typ Max Unit Power Supply Voltage VDD Ta=25ºC 5.0 V Power Supply Current Input voltage (high) Input voltage (low) Recommended LC Driving Voltage Idd Vdd=5.0V -- 15 25 mA Vih H level VDD-2.2 -- VDD V Vil L level 0 -- 0.8 V -20ºC -- -- -- Vdd -Vo 25ºC 16 .4 16.8 17.2 V 70ºC -- -- -- AZ DISPLAYS, INC. PAGE 03 OF 09 AGM2412A-FLB-FTH GRAPHIC MODULE VER1.0 4.2 The Characteristic Of Backlight Item Sy mbol Condition Min Typ Max Operate Current IF Vbl=5.0V R=16.5 -- 120 -- Luminance Lv IF= 120 mA -- 23 0 -- Peak wave length p IF= 120 mA 465 4 70 475 Coordinate range -- IF= -- mA x= --- , y= --- Note:Luminance means the backlight brightn...
