ADPR30B12CSNF_I01

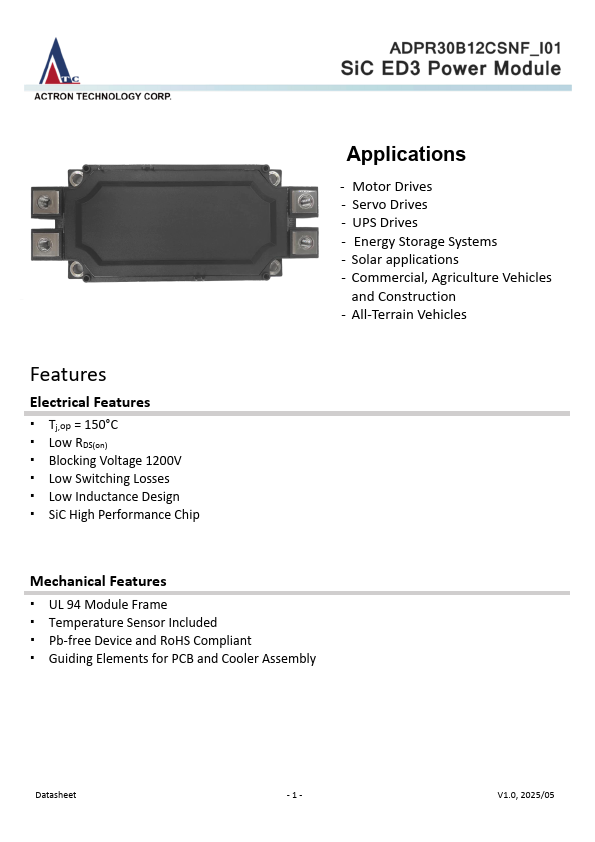

Features
Electrical Features
Tj,op = 150°C Low RDS(on) Blocking Voltage 1200V Low Switching Losses Low Inductance Design Si C High Performance Chip
Applications
- Motor Drives
- Servo Drives
- UPS Drives
- Energy Storage Systems
- Solar applications
- mercial, Agriculture Vehicles and Construction
- All-Terrain Vehicles
Mechanical Features
UL 94 Module Frame Temperature Sensor Included Pb-free Device and Ro HS pliant Guiding Elements for PCB and Cooler Assembly
-1-
V1.0, 2025/05

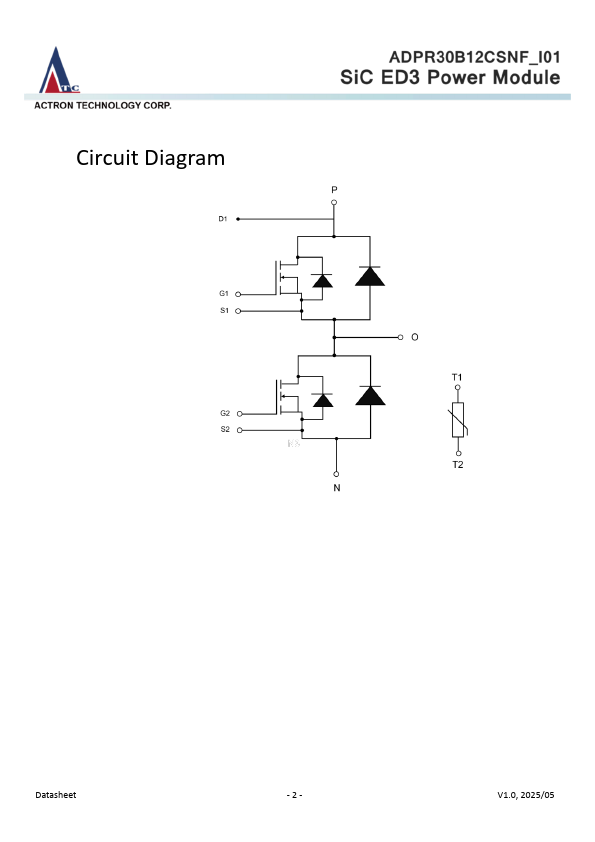

Circuit Diagram
-2-
V1.0, 2025/05
MOSEFT
▍Maximum Rated Values
Parameter
Conditions
Drain-source voltage
Tj = 25°C
Gate-source voltage
DC drain current
VGS = 18V, TC = 25°C, Tj max = 175°C
Pulsed drain current Max junction temperature
Verified by design, tp limited by Tj max
Symbol
VDSS VGS ID nom ID pulse Tj, max
Values
1200 -10/+23
600 1200 175
Unit
V V A A °C
▍Characteristics Values
Parameter
Conditions
Drain-source on...
