Advanced Monolithic Systems AMS2115
The AMS2115 is a single IC controller that drives an external N Channel MOSFET as a source follower to produce a fast transient response, low dropout voltage regulator. The fast transient load performance is obtained by eliminating expensive tantalum or bulk electrolytic output capacitors in the most demanding modern microprocessor applications. By selecting the Nchannel MOSFET Rds(on) a very low dropout voltage can be achieve.| Part No. | AMS2115 |
|---|---|
| Datasheet | AMS2115 Download |
| Manufacturer |  Advanced Monolithic Systems |
| Description | FAST TRANSIENT RESPONSE LDO CONTROLLER |
| Buy | Stock & Price |
GENERAL DESCRIPTION
Precision-trimmed adjustable and fixed output voltage version accommodates any required microprocessor application. A protection feature includes a high side current limit amplifier that activates a circuit to limit the FET gate drive. A shutdown pin turns off the gate drive and some internal circuits to reduce quiescent current. AMS2115 is offered in 8L SOIC and package.FEATURES
● Fast Transient Response● Dropout Voltage Defined by FET Used
● Very Tight Load Regulation
● High Side Sense Current Limit
APPLICATIONS
● Microprocessor Supplies● Video Card Supplies
● Low Voltage Logic Supplies

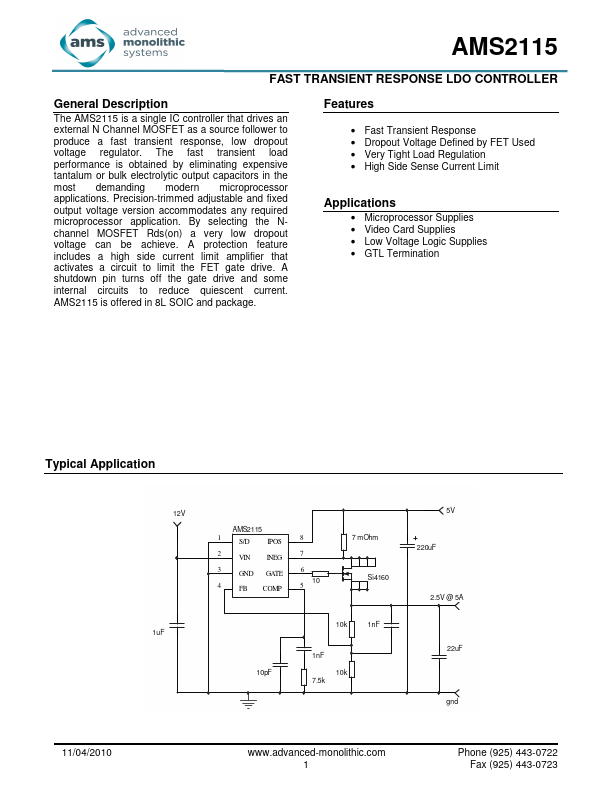

● GTL Termination Typical Application 12V 1uF AMS2115 1 S/D IPOS 2 VIN INEG 3 GND GATE 4 FB COMP 8 7 6 5 10 7 mOhm Si4160 10pF 10k 1nF 1nF 10k 7.5k 5V 220uF 2.5V @ 5A 22uF gnd 11/04/2010 1 Phone (925) 443-0722 Fax (925) 443-0723 AMS2115 FAST TRANSIENT RESPONSE LOW DROPOUT REGULATOR Pin

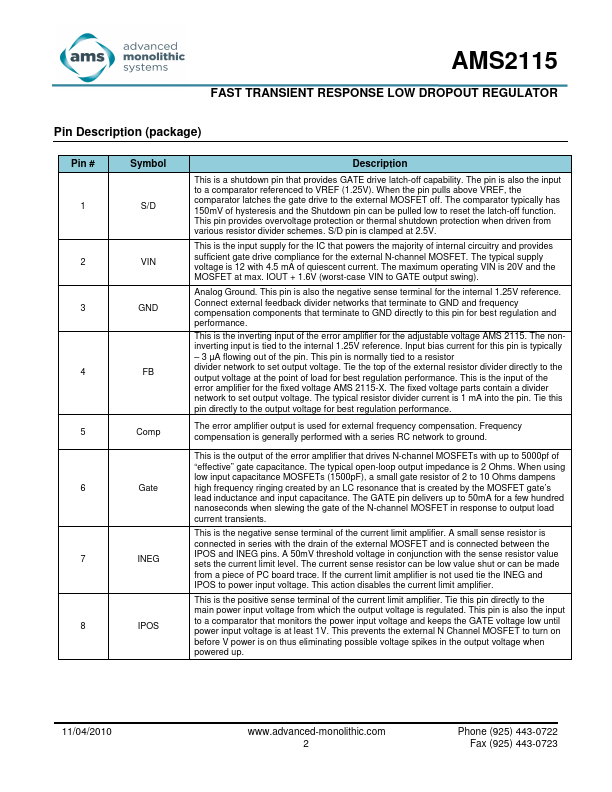

DESCRIPTION

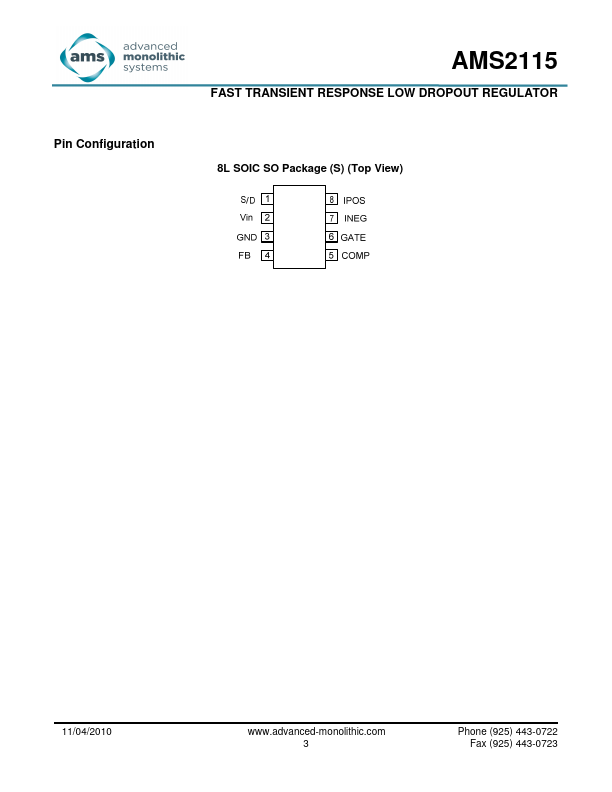

(package) Pin # 1 2 3 4 5 6 7 8 Symbol S/D VIN GND FB Comp Gate INEG IPOSDESCRIPTION
This is a shutdown pin that provides GATE drive latch-off capability.
