AMS4155 - 2A 24V Step-Down Converter

General Description

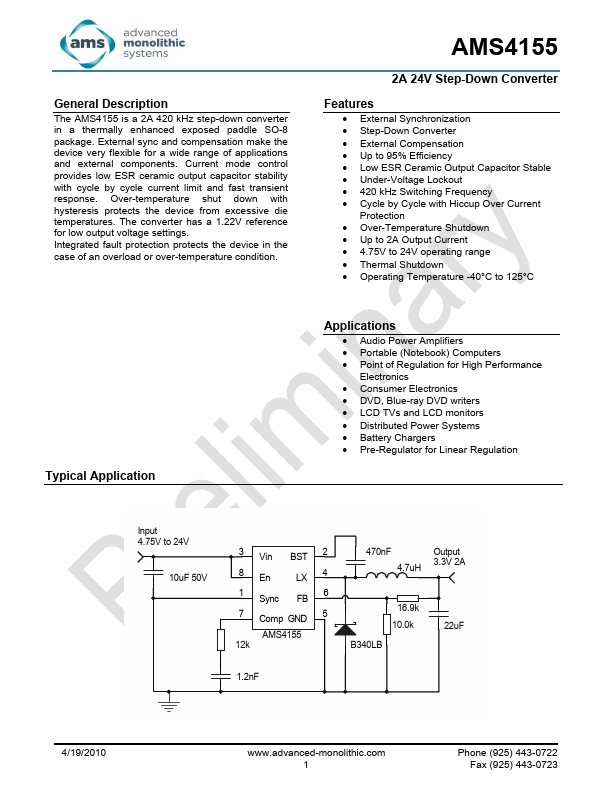

The AMS4155 is a 2A 420 kHz step-down converter in a thermally enhanced exposed paddle SO-8 package.

External sync and compensation make the device very flexible for a wide range of applications and external components.

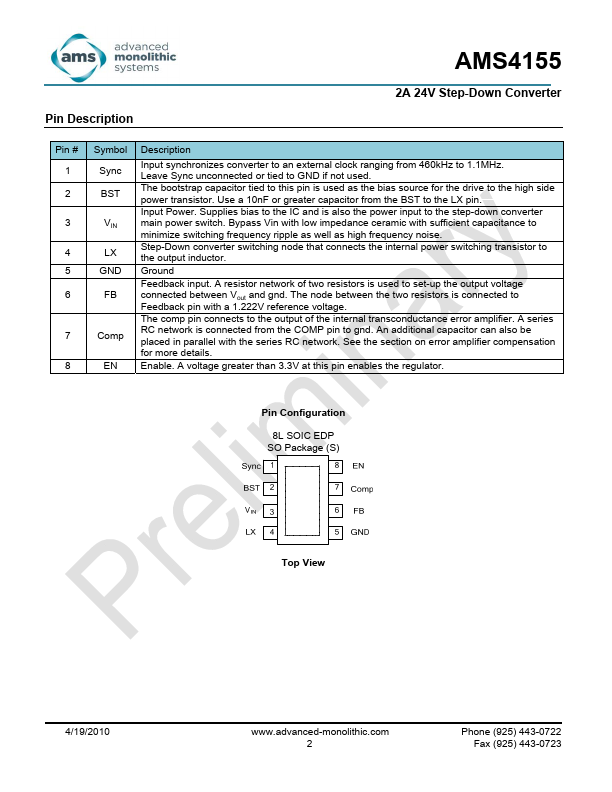

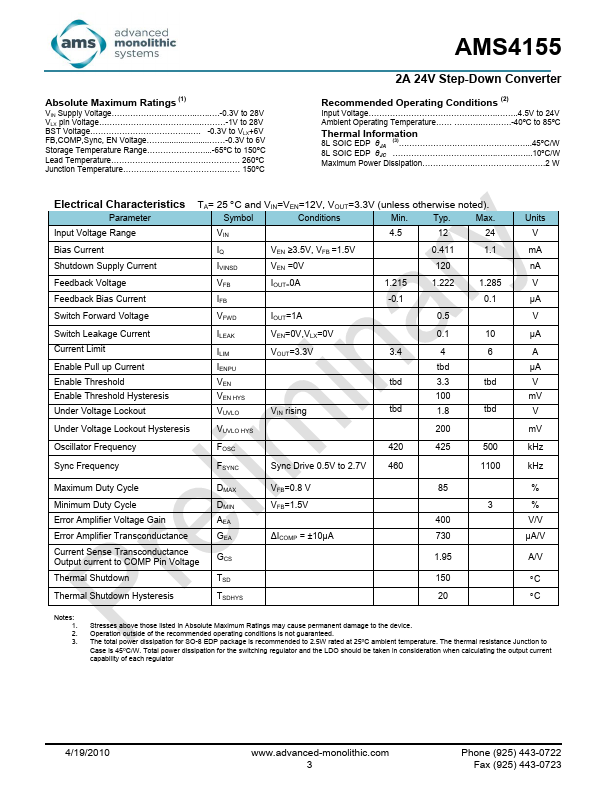

Key Features

  • External Synchronization.
  • Step-Down Converter.
  • External Compensation.
  • Up to 95% Efficiency.
  • Low ESR Ceramic Output Capacitor Stable.
  • Under-Voltage Lockout.
  • 420 kHz Switching Frequency.
  • Cycle by Cycle with Hiccup Over Current Protection.
  • Over-Temperature Shutdown.
  • Up to 2A Output Current.
  • 4.75V to 24V operating range.
  • Thermal Shutdown.
  • Operating Temperature -40°C to 125°C Typical.
