AP9567GJ-HF - P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Download the AP9567GJ-HF datasheet PDF. This datasheet also covers the AP9567GH-HF variant, as both devices belong to the same p-channel enhancement mode power mosfet family and are provided as variant models within a single manufacturer datasheet.

General Description

AP9567 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

It provides the designer with an extreme efficient device for use in a wide range of power applications.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AP9567GH-HF-AdvancedPowerElectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
AP9567GH-HF P-Channel 40V MOSFET VBsemi
AP9561GH-HF P-Channel 40V MOSFET VBsemi
AP9569GH P-Channel 40V MOSFET VBsemi
AP9575GM P-Channel MOSFET VBsemi
AP9050 PROTECTION INTERFACE Diodes Incorporated

Other Datasheets by Advanced Power Electronics Corp

Part Number Description
AP9567GJ-HF-3 P-CHANNEL ENHANCEMENT MODE POWER MOSFET
AP9567GJ P-CHANNEL ENHANCEMENT MODE POWER MOSFET
AP9567GH P-CHANNEL ENHANCEMENT MODE POWER MOSFET
AP9567GH-HF P-CHANNEL ENHANCEMENT MODE POWER MOSFET
AP9567GH-HF-3 P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

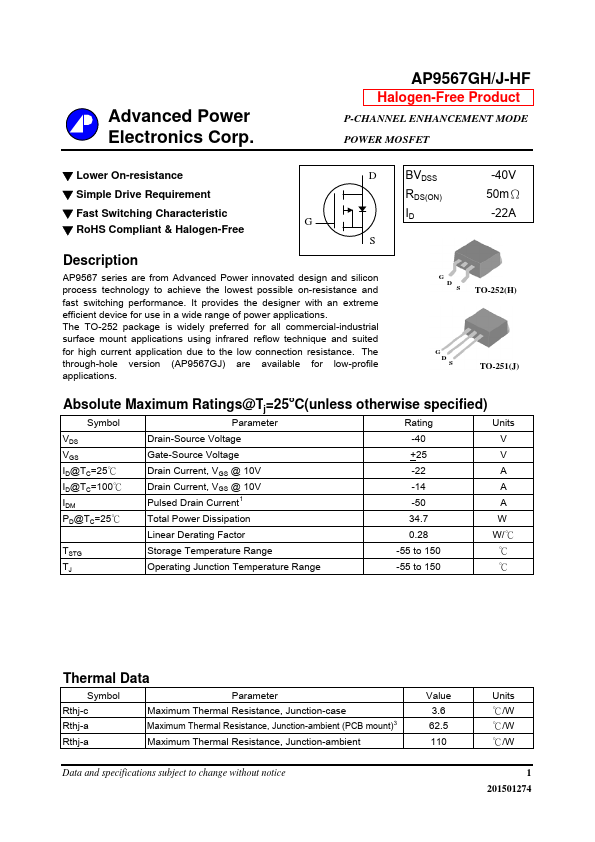

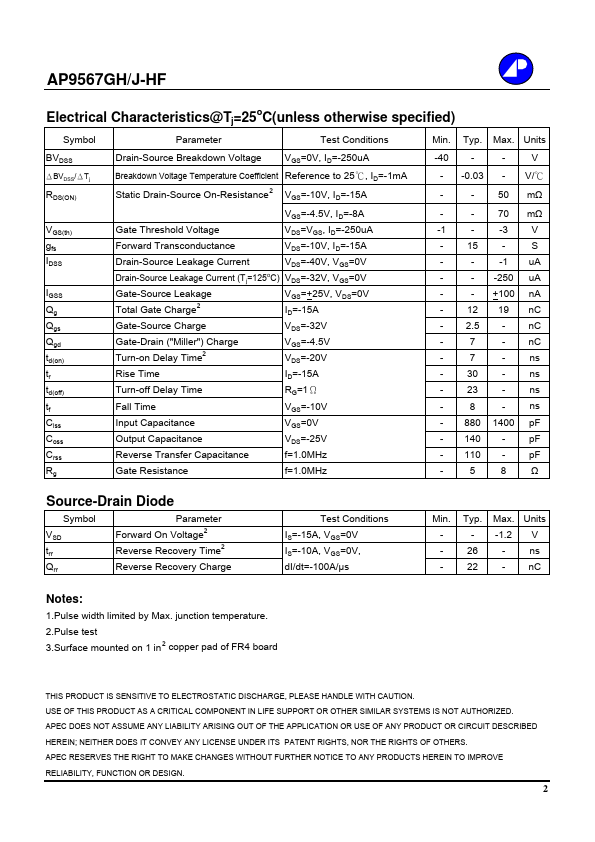

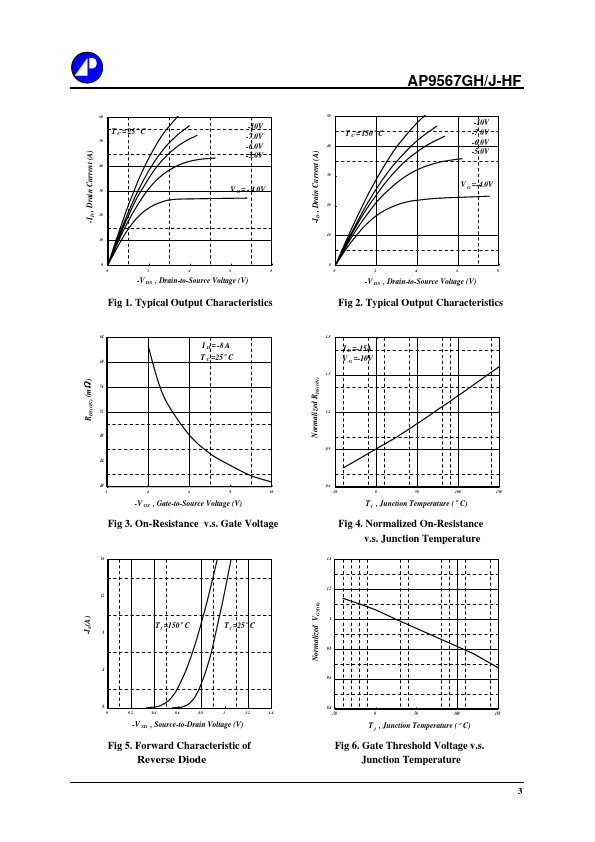

Advanced Power Electronics Corp. AP9567GH/J-HF Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower On-resistance D ▼ Simple Drive Requirement ▼ Fast Switching Characteristic ▼ RoHS Compliant & Halogen-Free G S Description AP9567 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide range of power applications. The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. The through-hole version (AP9567GJ) are available for low-profile applications.
