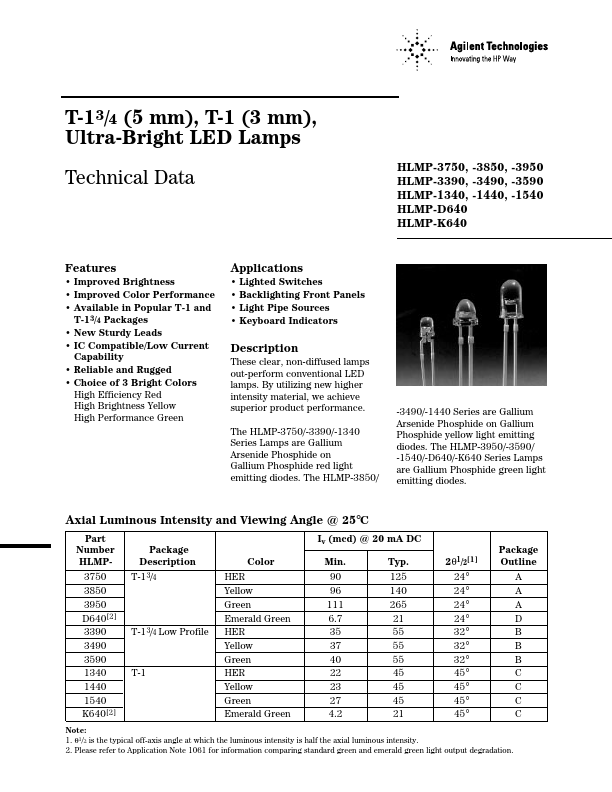

Agilent Technologies HLMP-D640
The HLMP-3750/-3390/-1340 Series Lamps are Gallium Arsenide Phosphide on Gallium Phosphide red light emitting diodes. The HLMP-3850/ -3490/-1440 Series are Gallium Arsenide Phosphide on Gallium Phosphide yellow light emitting diodes. The HLMP-3950/-3590/ -1540/-D640/-K640 Series Lamps are Gallium Phosphide green light emitting diodes.| Part No. | HLMP-D640 |
|---|---|
| Datasheet | HLMP-D640 Download |
| Manufacturer |  Agilent Technologies |
| Description | Ultra-Bright LED Lamps |
| Buy | Stock & Price |
FEATURES
● Improved Brightness● Improved Color Performance
● Available in Popular T-1 and T-13/4 Packages
● New Sturdy Leads
● IC Compatible/Low Current Capability
● Reliable and Rugged
● Choice of 3 Bright Colors High Efficiency Red High Brightness Yellow High Performance Green
APPLICATIONS
● Lighted Switches● Backlighting Front Panels
● Light Pipe Sources
● Keyboard Indicators
DESCRIPTION
These clear, non-diffused lamps out-perform conventional LED lamps. By utilizing new higher intensity material, we achieve superior product performance. Axial Luminous Intensity and Viewing Angle @ 25°C Part Number HLMP- 3750 3850 3950 D640[2] 3390 3490 3590 1340 1440 1540 K640[2] PackageDESCRIPTION
T-13/4 T-13/4 Low Profile T-1 Color HER Yellow Green Emerald Green HER Yellow Green HER Yellow Green Emerald Green Iv (mcd) @ 20 mA DC Min. 90 96 111 6.7 35 37 40 22 23 27 4.2 Typ. 125 140 265 21 55 55 55 45 45 45 21 2θ1/2[1] 24° 24° 24° 24° 32° 32° 32° 45° 45° 45° 45° Package Outline A A A D B B B C C C C Note: 1. θ1/2 is the typical off-axis angle at which the luminous intensity is half the axial luminous intensity.
