IAM-91563 - 3V Downconverter

Agilent

General Description

Agilent’s IAM-91563 is an economical 3V GaAs MMIC mixer used for frequency down-conversion.

RF frequency coverage is from 0.8 to 6 GHz and IF coverage is from 50 to 700 MHz.

Packaged in the SOT-363 package, this 4.0 sq.

Key Features

Lead-free Option Available.
+0 dBm Input IP3 at 1.9 GHz.
Single +3V Supply.
8.5 dB SSB Noise Figure at 1.9 GHz.
9.0 dB Conversion Gain at 1.9 GHz.
Ultra-miniature Package.

📥 Download Datasheet

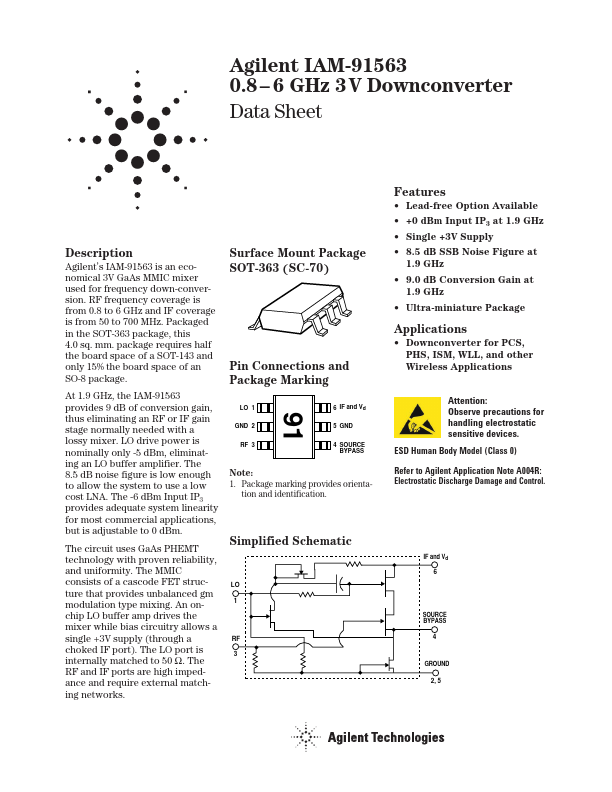

IAM-91563 3v downconverter by Agilent - Datasheet Preview

Datasheet Details

Part number	IAM-91563
Manufacturer	Agilent
File Size	370.32 KB
Description	3V Downconverter
Datasheet	IAM-91563 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
IAM-91563	3V Downconverter	AVAGO
IAM-92516	High Linearity GaAs FET Mixer	Hewlett-Packard
IAM-92516	High Linearity GaAs FET Mixer	AVAGO
IAM-93516	High Linearity Integrated GaAs Mixer	AVAGO
IAM-20381	High Performance 3-Axis MotionTracking Accelerometer	TDK

Other Datasheets by Agilent

Part Number	Description
IAM-93516	High Linearity Integrated GaAs Mixer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

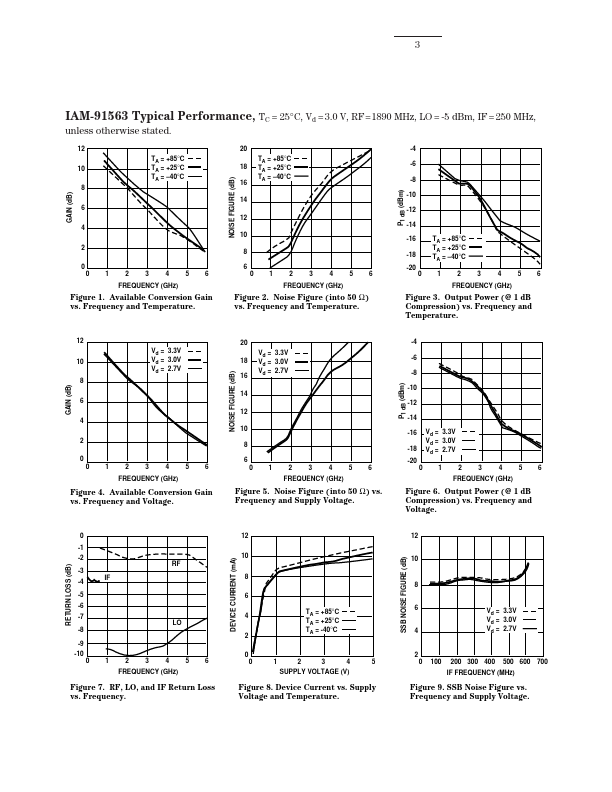

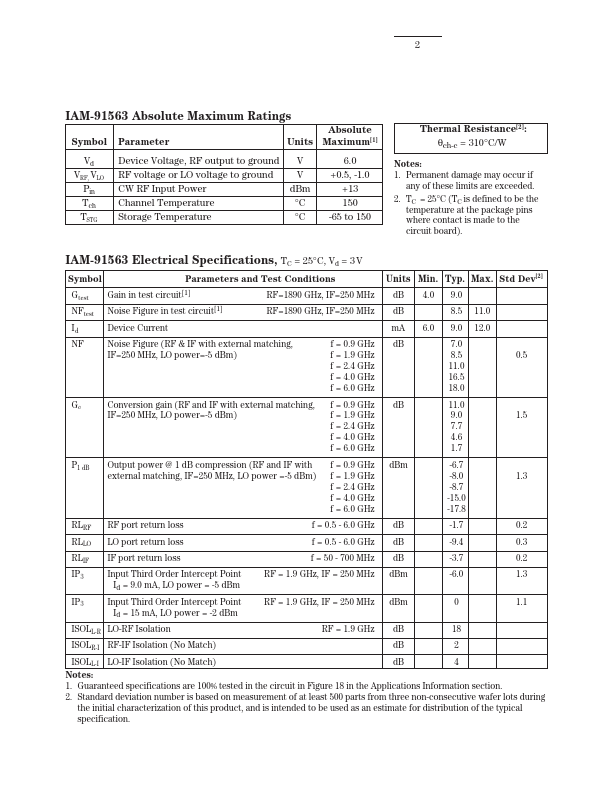

Agilent IAM-91563 0.8 – 6 GHz 3 V Downconverter Data Sheet Description Agilent’s IAM-91563 is an economical 3V GaAs MMIC mixer used for frequency down-conversion. RF frequency coverage is from 0.8 to 6 GHz and IF coverage is from 50 to 700 MHz. Packaged in the SOT-363 package, this 4.0 sq. mm. package requires half the board space of a SOT-143 and only 15% the board space of an SO-8 package. At 1.9 GHz, the IAM-91563 provides 9 dB of conversion gain, thus eliminating an RF or IF gain stage normally needed with a lossy mixer. LO drive power is nominally only -5 dBm, eliminating an LO buffer amplifier. The 8.5 dB noise figure is low enough to allow the system to use a low cost LNA.
