2SB799

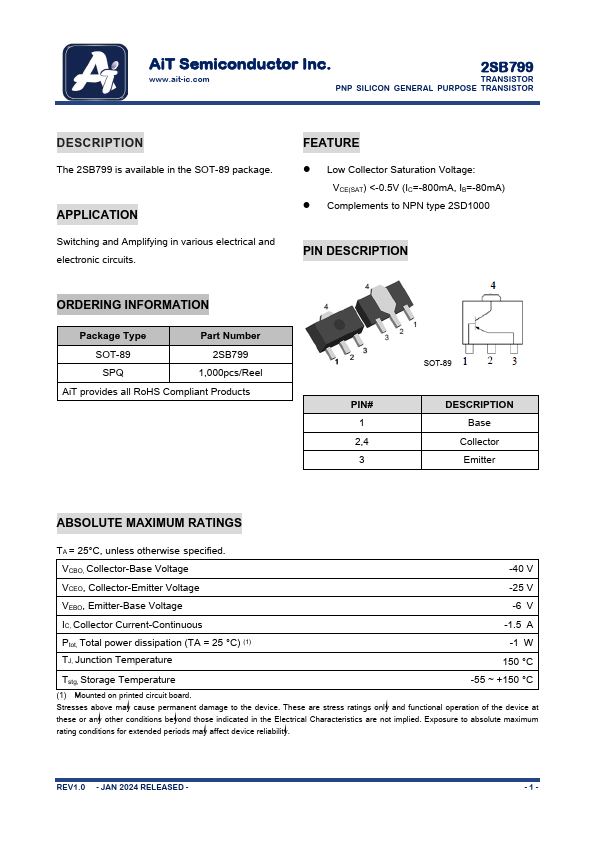

2SB799 is PNP SILICON GENERAL PURPOSE TRANSISTOR manufactured by AiT Semiconductor.
DESCRIPTION
The 2SB799 is available in the SOT-89 package.
APPLICATION
Switching and Amplifying in various electrical and electronic circuits.
FEATURE
- Low Collector Saturation Voltage: VCE(SAT) <-0.5V (IC=-800m A, IB=-80m A)
- plements to NPN type 2SD1000
PIN DESCRIPTION
ORDERING INFORMATION
Package Type
Part Number
SOT-89
1,000pcs/Reel
Ai T provides all Ro HS pliant Products
PIN# 1 2,4 3
SOT-89
DESCRIPTION
Base
Collector Emitter
ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise specified.
VCBO, Collector-Base Voltage
-40 V
VCEO, Collector-Emitter Voltage
-25 V
VEBO, Emitter-Base Voltage
-6 V
IC, Collector Current-Continuous
-1.5 A
Ptot, Total power dissipation (TA = 25 °C) (1) TJ, Junction Temperature
-1 W 150 °C
Tstg, Storage Temperature
-55 ~ +150 °C
(1) Mounted on printed circuit board. Stresses above may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated in the Electrical Characteristics are not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
REV1.0
- JAN 2024 RELEASED
- -1-
Ai T Semiconductor Inc.
.ait-ic.
