2SB804 - SILICON PNP EPITAXIAL PLANAR TRANSISTOR

General Description

The 2SB804-W, 2SB804-V, and 2SB804-U are available in the SOT-89 package.

📥 Download Datasheet

Datasheet Details

Part number 2SB804
Manufacturer AiT Semiconductor
File Size 321.21 KB
Description SILICON PNP EPITAXIAL PLANAR TRANSISTOR
Datasheet download datasheet 2SB804 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB804 PNP SILICON EPITAXIAL TRANSISTOR NEC
2SB804 PNP Transistors Kexin
2SB804 PNP Silicon Epitaxial Planar Transistor GME
2SB800 PNP SILICON EPITAXIAL TRANSISTOR NEC
2SB800 PNP Transistors Kexin

Other Datasheets by AiT Semiconductor

Part Number Description
2SB805 SILICON PNP EPITAXIAL PLANAR TRANSISTOR
2SB806 SILICON PNP EPITAXIAL PLANAR TRANSISTOR
2SB1124 PNP EPITAXIAL PLANAR SILICON TRANSISTOR
2SB1188 PNP-SILICON GENERAL USE TRANSISTOR
2SB1189 PNP MEDIUM POWER TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

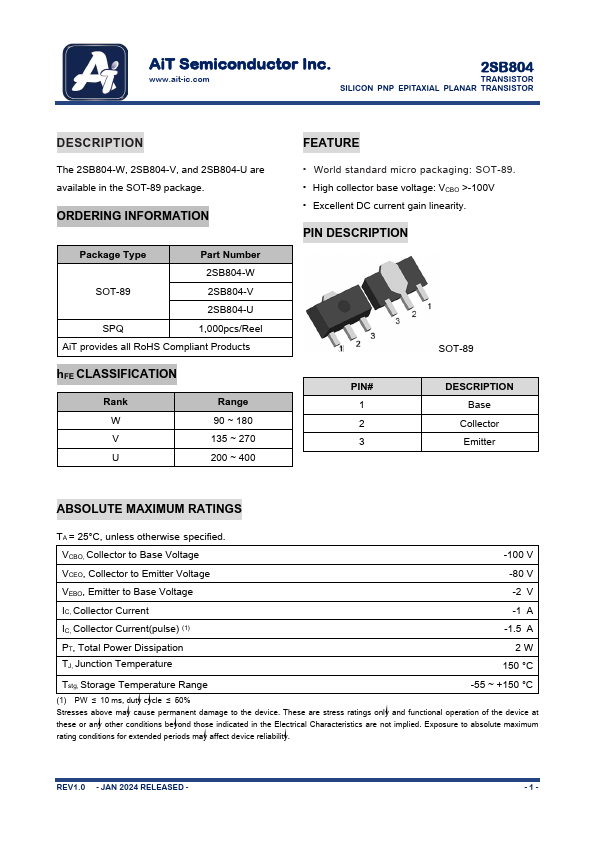

AiT Semiconductor Inc. 2SB804 www.ait-ic.com TRANSISTOR SILICON PNP EPITAXIAL PLANAR TRANSISTOR DESCRIPTION The 2SB804-W, 2SB804-V, and 2SB804-U are available in the SOT-89 package. ORDERING INFORMATION Package Type Part Number 2SB804-W SOT-89 2SB804-V 2SB804-U SPQ 1,000pcs/Reel AiT provides all RoHS Compliant Products hFE CLASSIFICATION Rank W V U Range 90 ~ 180 135 ~ 270 200 ~ 400 FEATURE • World standard micro packaging: SOT-89. • High collector base voltage: VCBO >-100V • Excellent DC current gain linearity. PIN DESCRIPTION PIN# 1 2 3 SOT-89 DESCRIPTION Base Collector Emitter ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise specified.
