2SB805 - SILICON PNP EPITAXIAL PLANAR TRANSISTOR

General Description

The 2SB805-M, 2SB805-L, and 2SB805-K are available in the SOT-89 package.

📥 Download Datasheet

Datasheet Details

Part number 2SB805
Manufacturer AiT Semiconductor
File Size 319.68 KB
Description SILICON PNP EPITAXIAL PLANAR TRANSISTOR
Datasheet download datasheet 2SB805 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB805 PNP SILICON EPITAXIAL TRANSISTOR NEC
2SB805 PNP Transistors Kexin
2SB800 PNP SILICON EPITAXIAL TRANSISTOR NEC
2SB800 PNP Transistors Kexin
2SB804 PNP SILICON EPITAXIAL TRANSISTOR NEC

Other Datasheets by AiT Semiconductor

Part Number Description
2SB804 SILICON PNP EPITAXIAL PLANAR TRANSISTOR
2SB806 SILICON PNP EPITAXIAL PLANAR TRANSISTOR
2SB1124 PNP EPITAXIAL PLANAR SILICON TRANSISTOR
2SB1188 PNP-SILICON GENERAL USE TRANSISTOR
2SB1189 PNP MEDIUM POWER TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

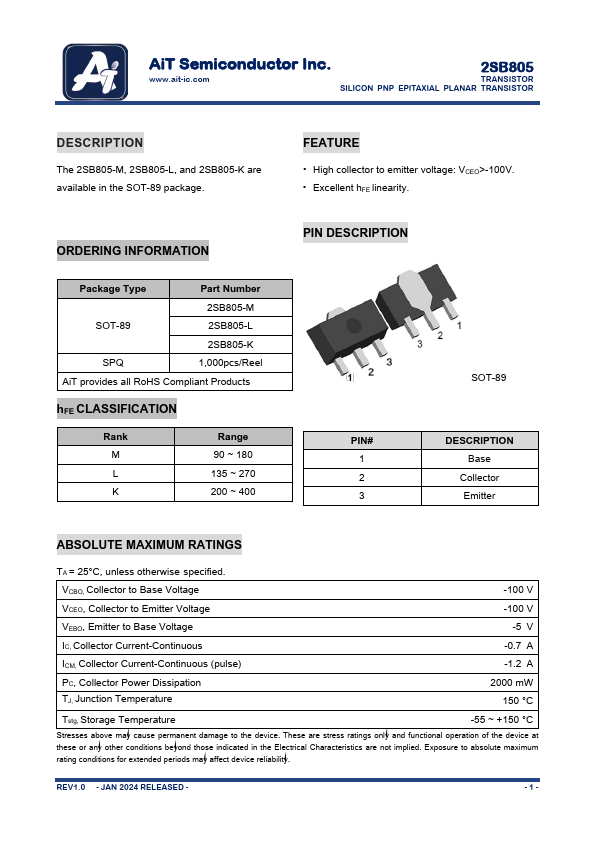

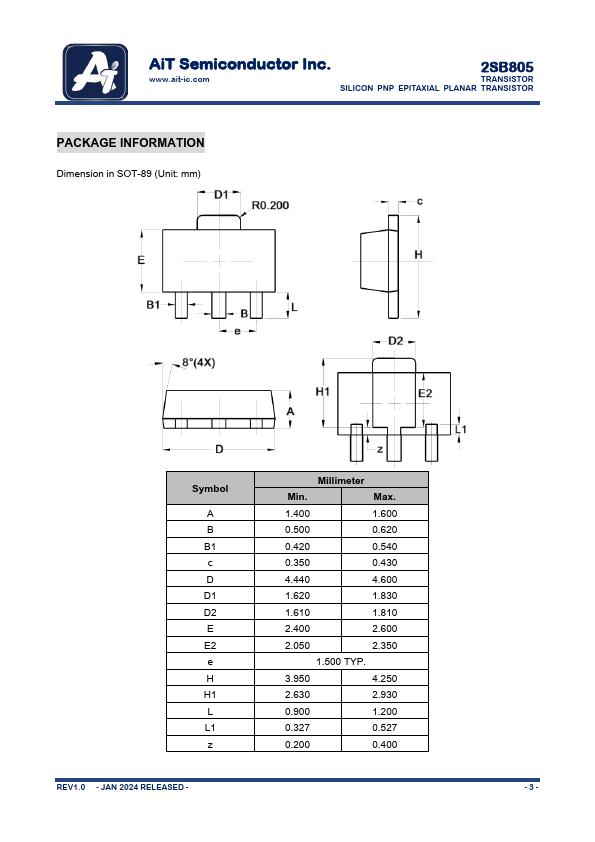

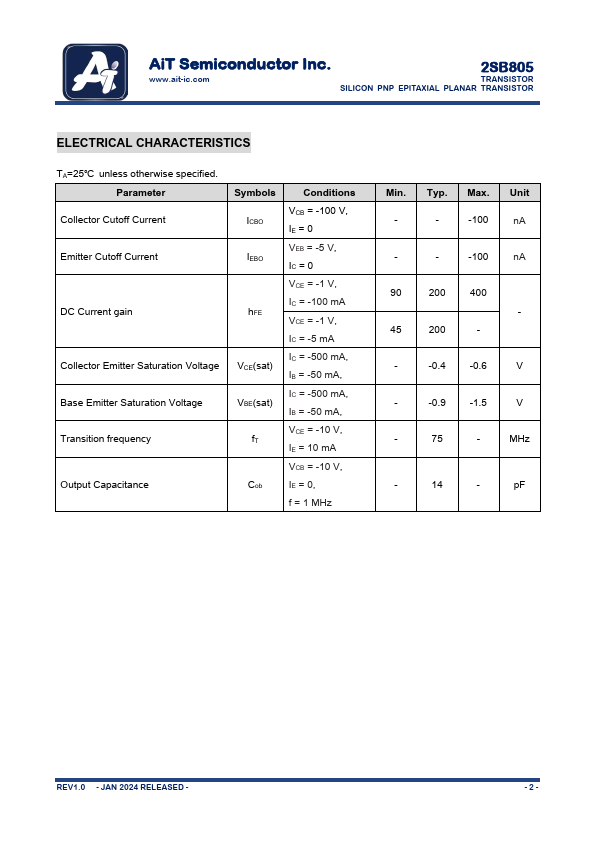

AiT Semiconductor Inc. 2SB805 www.ait-ic.com TRANSISTOR SILICON PNP EPITAXIAL PLANAR TRANSISTOR DESCRIPTION The 2SB805-M, 2SB805-L, and 2SB805-K are available in the SOT-89 package. ORDERING INFORMATION Package Type Part Number 2SB805-M SOT-89 2SB805-L 2SB805-K SPQ 1,000pcs/Reel AiT provides all RoHS Compliant Products hFE CLASSIFICATION Rank M L K Range 90 ~ 180 135 ~ 270 200 ~ 400 FEATURE • High collector to emitter voltage: VCEO>-100V. • Excellent hFE linearity. PIN DESCRIPTION PIN# 1 2 3 SOT-89 DESCRIPTION Base Collector Emitter ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise specified. VCBO, Collector to Base Voltage -100 V VCEO, Collector to Emitter Voltage -100 V VEBO, Emitter to Base Voltage -5 V IC, Collector Current-Continuous -0.
